GV-PAD - IP Camera Tablet Viewer
More products by
Geovision

GV-PAD - IP Camera Tablet Viewer


(0 reviews)

$407.00

$1,500.00

Availability In Stock
Ships within 1 to 12 Hours

SKU GV-PAD

Product # 65720

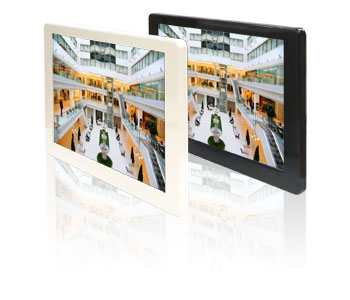

The GV-Pad is a panel device that decodes and displays incoming IP streams from GeoVision and third-party IP devices. It is light-weighted and requires only minimal amount of installation. As a standalone device, the GV-Pad is self equipped with a display screen and supports almost all the features of a GV-IP Decoder Box. Through the network, a GV-Pad can receive and manage up to 64 IP streams. The administrators can monitor channels, take snapshots of critical moments and pause at a specific channel when events occur, all through the supplied remote control. GV-Joystick can be installed to control GeoVision and third-party PT / PTZ / Speed Dome cameras.

Features

  • Model No. GV-PAD
  • Ordering Part No. 140-GVPAD-W00
  • SKU 89-GVPAD00-W10U
  • Decode video streams in H.264 codec at a maximum frame rate of the IP device
  • Decode up to 5 megapixel IP cameras
  • Decode up to 64 IP streams
  • Support for 3rd party IP cameras that adhere to RTSP, ONVIF or PSIA
  • Support for display of Matrix view through GV-Mobile Server
  • Support for 10/100 Ethernet over LAN
  • Support for Wi-Fi
  • Support for single and sequential display
  • Support for GV-Joystick control of GeoVision and third-party PT, PTZ and Speed Dome cameras
  • Support for remote firmware upgrade, IP address configuration and addition of new channel
  • Display of Matrix view through GV-Mobile Server
  • IR remote control
  • SD card and USB drive for snapshot storage and firmware upgrade

The GV-Pad is compatible with:
1. Most GeoVision IP devices (of the indicated firmware versions) using H.264 codec
2. GV-SD200 using H.264 codec through ONVIF
3. Third-party IP devices that support H.264 and adhere to RTSP, ONVIF or PSIA.

Supported GeoVision IP Devices
Device Type Models Firmware Versions
Box Camera GV-BX110D V1.08 or later
All models
(except GV-BX110D)
V1.06 or later
Bullet Camera GV-BL110D V1.08 or later
All models
(except GV-BL110D)
V1.06 or later
Cube Camera
Fixed Dome
Vandal Proof IP Dome
All models V1.06 or later
Mini Fixed Dome GV-MFD110 V1.08 or later
All models
(except GV-MFD110)
V1.06 or later
PT Camera
PTZ Camera
GV-PT110D
GV-PTZ010D
V1.02 or later
V1.0 or later
Speed Dome GV-SD010
GV-SD200
V1.02 or later
V1.0 or later
Video Server GV-VS04H V1.04 or later
Video Server GV-VS11 V1.0 or later
Video Server GV-VS12 V1.05 or later
Compact DVR GV-Compact DVR V3 series only V1.0 or later
IMPORTANT: The connected GeoVision and third-party channels must be set with H.264 codec to be compatible.

To decode and display non-H.264 IP channels or analog channels, connect the devices to GV-System and access them through GV-Mobile Server. The supported devices are listed below.

Supported Devices Connected to GV-System
Analog cameras
All models of GeoVision IP cameras, GV-Video Server, GV-Compact DVR, GV-IP Speed Dome, GV-Smart Box and GV-DSP LPR
11 brands of third-party IP cameras.
Video
Video Codec H.264
Resolution 1280 x 800
Network
Interface 10/100 Ethernet
Protocol TCP, RTSP, ONVIF, PSIA
Mechanical
IR Remote Control Yes
Connectors Power 12V DC Jack
Ethernet RJ-45
Local Storage & Firmware USB slot (2.0 backward compatible, FAT32 format)
Upgrade SD card slot (for Class 6 or above, FAT32 format)
General
Operating Temperature 0 °C ~ 40 °C / 32 °F ~ 104 °F
Operating Humidity 20 % ~ 80 % (with no condensation)
Color Black, White
Dimensions (W x H x D) 342.8 × 220.3 × 38.3 mm / 13.5 x 8.7 x 1.5 in
Net Weight 1160 g / 2.6 lb
Power DC 12 V
Power Consumption 36 W (max. 3 A at 12V DC)
Regulatory CE, FCC compliant
Language English
