GV-NET I/O V3 - 4 Alarm Inputs & 4 Relay Outputs plus RS485 to RS232 Converter w/ USB Support
More products by
Geovision

GV-NET I/O V3 - 4 Alarm Inputs & 4 Relay Outputs plus RS485 to RS232 Converter w/ USB Support


(0 reviews)

Availability In Stock
Ships within 1 to 12 Hours

SKU WECGV-NET-IO-V3

Product # 18714

GV-NET I/O V3 - 4 Alarm Inputs & 4 Relay Outputs plus RS485 to RS232 Converter w/ USB Support

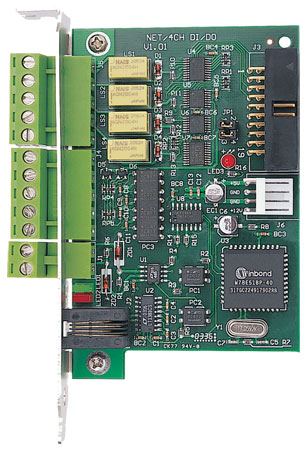

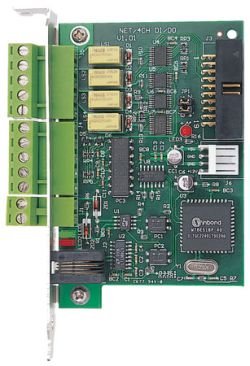

The GV-NET Card is an interface converter that can be installed inside a PC. The GV-NET/IO Card adds 4 inputs, and 4 relay outputs. NOW WITH USB Support

Specifications

Input

Input

4

Input Signal

9~30V AC/DC

Output

Relay Output

4

Relay Status

Normal Open

Relay Capacitance

USB Connection

30V DC, 3A

RS-232 Connection

125 / 250V AC, 3A
30V DC, 3A

Interface

RJ-11 to DB9

RJ-11 to USB

3-pin internal USB to internal USB

Mode Switch

I/O Box Mode

Without GV-Video Capture Card

NET/IO Card Mode

With GV-Video Capture Card

Address

1-4

Communication

RS-485, USB, RS-232

Environmental Conditions

0~50C , 5%~95% (non-condensing)

Dimensions

90 (W) x 99 (H) mm

[Specification PDF]
