GV-EL202B Electric Bolt - fail safe product
More products by
Geovision

GV-EL202B Electric Bolt - fail safe product


(0 reviews)

$73.00

$110.00

Availability In Stock
Ships within 1 to 12 Hours

SKU GV-EL202B 81-ML200-001

Product # 85619

GeoVision Authorized Distributor Warranty

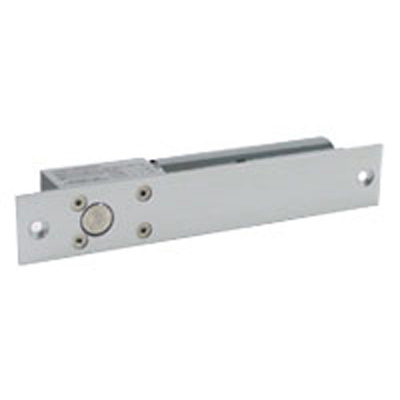

The GV-EL202B is an electric bolt, featured with a stainless steel faceplate and a built-in voltage spike suppressor. It supports lock sensor and door status sensor functions. The fail-safe electric bolt locks the door when the power is applied, and unlocks the door when the power is removed. It can be applied to single-leaf or double-leaf doors.

Model No GV-EL202B

Ordering Part No. 530-ML200-000

SKU 81-ML200-001

The GV-EL202B is an electric bolt, featured with a stainless steel faceplate and a built-in voltage spike suppressor. It supports lock sensor and door status sensor functions. The fail-safe electric bolt locks the door when the power is applied, and unlocks the door when the power is removed. It can be applied to single-leaf or double-leaf doors.

Specifications

Voltage DC 12V or AC 24V
Current 0.9A (start); 0.3A (standby)
Lock Sensor Switch Rating 1A at AC/DC 30V
Door Status Sensor Switch Rating 0.5A at AC/DC 30V (magnetic reed switch)
Auto Relock Jumper 0, 2.5 and 5 seconds (adjustable)
Dimensions (L x W x H) 202 x 35 x 43 mm (7.95" x 1.38" x 1.69")
Weight 0.9 kg (1.98 lb)
Certification CE, UL
