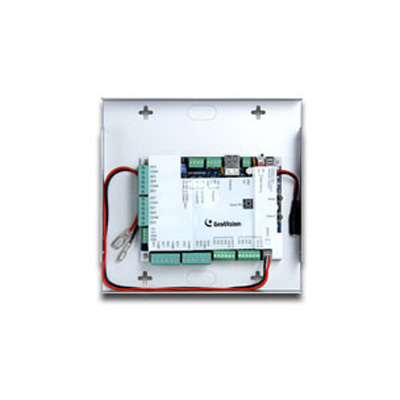

GV-AS Box (pair with AS100/AS110 to provide IO & Ethernet function, 2 doors solution)


(0 reviews)

Availability In Stock
Ships within 1 to 12 Hours

SKU GV-AS Box 84-ASBOX-100

Product # 85607

The optional GV-ASBox is the I/O and network expansion module for GV-AS100/ GV-AS110/ GV-AS120. With the GV-ASBox, additional network connectivity, 8 inputs, 8 outputs and 1 Wiegand reader can be added to GV-AS100/ GV-AS110/ GV-AS120.

  • Add TCP/IP networking capability to GV-AS100/ GV-AS110/ GV-AS120
  • Extend GV-AS100/ GV-AS110/ GV-AS120 from 1-door to 2-door controller
  • Support 1 Wiegand reader of 26 to 64 bits
  • Support 8 digital inputs and 8 relay outputs
  • 4 special outputs for lighting control and energy saving
  • Access GV-AS100/ GV-AS110/ GV-AS120
  • Route digital I/O controls from GV-AS100/ GV-AS110/ GV-AS120 to avoid tamper and enhance security level
  • Support 4 GV-Readers and GV-GF Fingerprint Readers through RS-485 connection

ASBOX SPECIFICATIONS

CPU 32-bit ARM7TDMI Microprocessor
Power 100 ~ 240V AC, 50 ~ 60Hz
Reader Port 1 Wiegand interface, 1 RS-485 interface only for GV-Readers and
GV-GF Fingerprint (max. 4 readers)
Wiegand Interface 1 Wiegand interface, 26 ~ 64 bit format
12V DC Power Supply, 200mA
Communication Protocol GV-AS100/110/120 RS-485
GV-ASManager TCP/IP (10/100 Mbps Ethernet)
Digital I/O Input 8 inputs, dry contact, NO / NC
Output 8 outputs
Operating Temperature 0 ~ 65" "C / 32 ~ 149" "F
Operating Humidity 10% ~ 90% RH (non-condensing)
Dimension (W x H x T) 214 x 206 x 48.5 mm / 8.43 x 8.11 x 1.91 in
Weight 850 g / 1.83 Ib
Certification CE, FCC, RoHS
