To adjust image alignment for a Fisheye camera, follow the instructions below:
  1. Go to Fisheye camera's web interface (default is http://192.168.0.10).
  2. Enter ID and password to log in (default is admin/admin).
  3. Install any ActiveX when prompted.

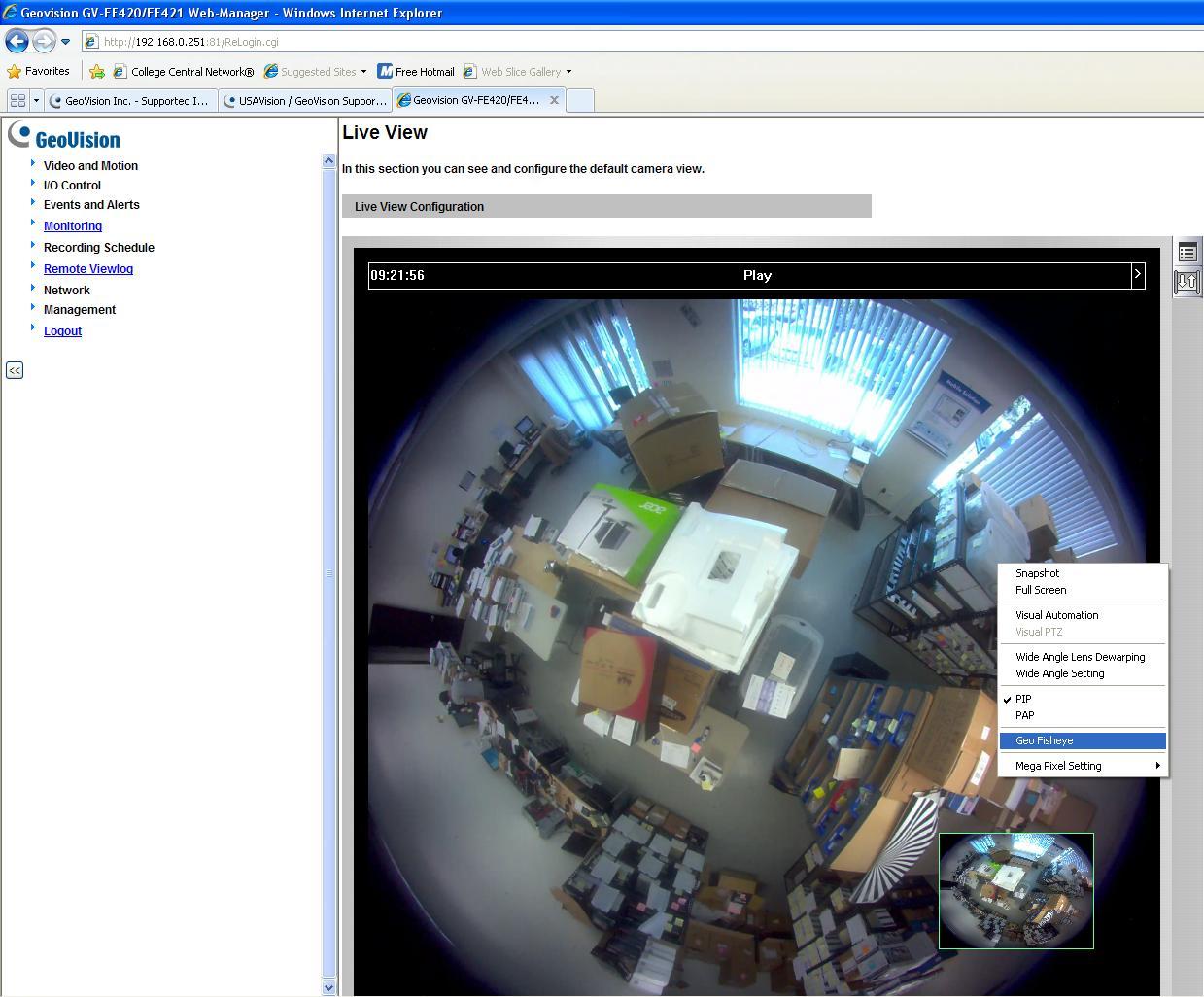

  4. In the default Fisheye view, right-click on the image and select GeoFisheye.
  5. Under Fisheye view, right-click on the image and select Image Alignment.

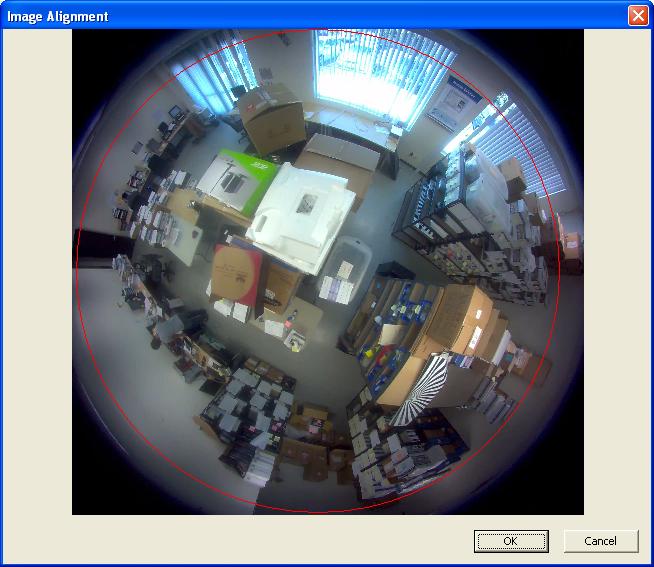

  6. Drag and extend the red circle so that the edge of the circle barely touches the top and bottom edges of the picture.

    Note: do not over extend the circle as it will result in black spots in Fisheye view.
  7. Click OK to save the setting.
