GeoVision Green/pink/scrambled images under Control Center Matrix view


GeoVision
Back to GeoVision Support | Support Home

Under multiple channel division, when the images become green/pink/scrambled, follow the steps below to correct such problem:
  1. Upgrade Control Center v3.0.0 to v3.0.2 from v8560 CMS installation disk.
  2. Alternatively, change the following settings:

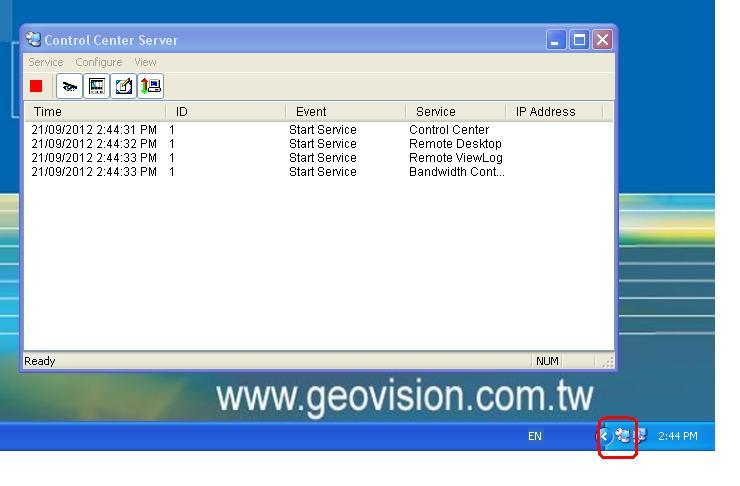

    1. Under Windows task bar, locate and double-click on the Control Center Server icon as highlighted below.

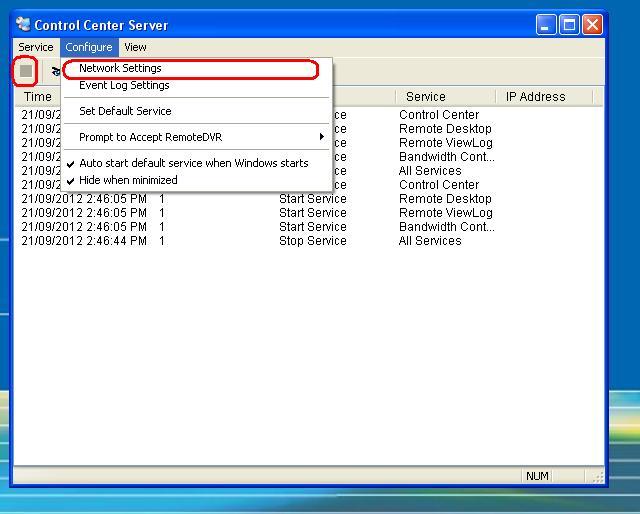

    2. Stop Control Center Service, then select Configure, Network Settings.
    3. Change Codec to GeoH.264.
    4. Restart Control Center then reconnect to the DVR/NVR.
