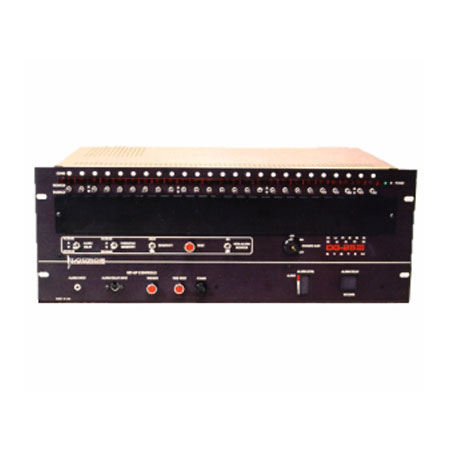

DG-25III Louroe Electronics 25 Zone Sound Activated Alarming Audio Base Station
More products by
Louroe Electronics

DG-25III Louroe Electronics 25 Zone Sound Activated Alarming Audio Base Station


(0 reviews)

$9,569.48

Availability In Stock

SKU WECDG-25III

Product # 23871

The DG-25III is a twenty five zone alarming base stations designed to provide sound activated audio monitoring. As a system, it is interfaced with Louroe microphones or speaker/microphones mounted in remote locations. Each zone has a variable threshold level based on frequency and sound pressure, and a variable alarm delay (from 0.1 to 3.2 seconds) that can be set by the installer or owner. When a sound or disturbance exceeds the pre-set threshold level and time duration, the unit goes into alarm. A lighted LED and three second tone identify the zone, along with a relay contact for activating a camera or other annunciation. Requires companion DG-MA for two-way listen/talkback or DG-Monitor for one-way listen. Can be cascaded up to 250 zones with total of 10 DG-25III base stations. Only one DG-MA or DG-Monitor is required.

Specifications:

  • Model Number - DG-25III
  • Power requirements for microphone - 12VDC @ 4mA
  • Input sensitivity @ alarm frequency - -20dB
  • Monitor output frequency - 100Hz - 10kHz
  • Relay Contact - 0.5A @ 125 VAC
  • Alarm tone duration - 3 Seconds
  • Power consumption - 50W(standby) 75W(max)
  • Size - 19"W x 7"H x 10 1/4"D
  • Weight - 17.5 lbs.
  • Finish - Black Anodized
