Camera Cable and Power Adapter Connection Diagram


Cut Power Adaptor Wire at the End

and Seperate Power Adaptor Wire and Connect with 4 Camera Power Wire

Use Electrical Tape to cover the expose wire.


We use BNC+Power Combo Cable for the camera connection.

At the camera site, Connect combo cable Power wire to the DC cord cable. Then, DC cord connect to camera

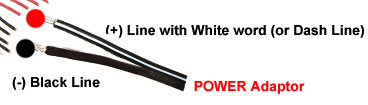

Red Line usually indicates (+) connect to DC cord with White Dash Line

Black Line usually incicates (-) connect to DC cord with Black Line

Connect BNC to Camera Video
