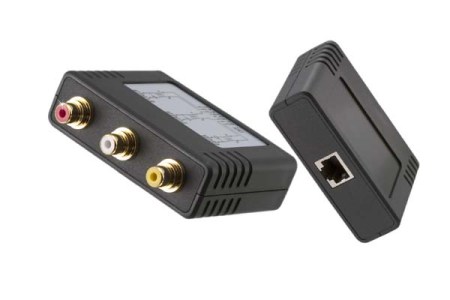

BLN-AV2R1B AUDIO/VIDEO BALUN 2RCA JACKS AND 1 BNC JACK TO RJ45 JACK
The Transceiver box allows transmission of 3-4 sets real time color or monochrome video signal UTP to 600 meters over industry Cat. 5 UTP networking cable. This transceiver box is designed for small CCTV installations where size and space are restricted. This products features Features: Audio/Video Balun.2 RCA Jacks and 1 BNC Jack To RJ45 Jack.Specifications of this products arte Bandwidth: Video DC to 8MHz - Audio 20Hz to 50KHz..Insertion Loss: < 2 dB over the frequency range from DC to 8MHz..Return Loss: > 15 dB over the frequency range from DC to 8MHz..Common Mode Rejection: > 40 dB at 8MHz..Impedance: BNC side 75 Ohms (Video) RCA side 600 Ohms (Audio).Cable: UTP: 24 gauge or lower solid copper twisted pair wire - Impedance: 100 Ohms at 1MHz - Max Capacitance: 20 pf/ft - Attenuation: 6.6 dB/1000ft at 1MHz..Transmission Distance: 2200 feet (CAT5 UTP).Housing: 81x60x24mm..This products related with Gem Electronics. This is a very good company. In classical transformers, there are two electrically separate windings of wire coils around the transformer’s core. The advantage of transformer-type over other types is that the electrically separate windings for input and output allow these baluns to connect circuits whose ground-level voltages are subject to ground loops or otherwise electrically incompatible; for that reason they are often calledisolation transformers. The electrical signal in the primary coil is converted into a magnetic field in the transformer’s core. When the electrical current through the primary reverses, it causes the established magnetic field to collapse. The collapsing magnetic field then induces an electric field in the secondary winding.
