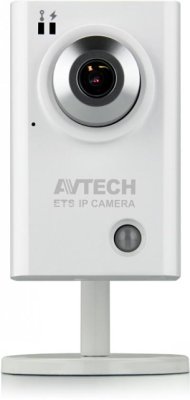

AVM301 1.3 Megapixel Network Camera

AVTECH
SKU: AVM301

This indoor surveillance camera can be connected to external alarm devices. It records high definition video with a 1.3 megapixel resolution both day and night. Footage can be viewed remotely from a PC or smart phone.

  • $195.00
Qty:
OR
  • HD Quality, 1.3M Pixels
  • Human Detection With Low False Alarm
  • External alarm devices, such as a buzzer or magnetic contacts, for function scalability.

Need a quick solution for indoor monitoring with human detection??? AVM301 might be the one you need.

This megapixel camera, AVM301, supports HD image display, allowing users to have clear and sharp monitoring pictures. In addition to its built-in sensor, this camera is also capable of connecting external alarm devices, such as a buzzer or magnetic contacts, for function scalability.

For data storage, in addition to use with AVTECH NVRs, this camera also supports ONVIF standard to use with other brand's NVR and simplify system integration.

External Alarm I/O Accessories

This camera supports all kinds of N.O. / N.C. type alarm sensors; for example, active infrared sensor, smoke detector, magnetic contacts and so forth to extend the flexibility of IP surveillance.

GENERAL



Image Sensor

1/4" SONY CMOS image sensor

Min. Illumination

0.1 Lux / F1.5

S/N Ratio

More than 48dB (AGC off)

Electronic Shutter

1/2 to 1/10,000 sec

Lens

f3.8mm / F1.5

Viewing Angle

62.7° (Diagonal) / 53.7° (Horizontal) / 34.1° (Vertical)

PIR Sensor

Detection Range 76° wide angle with up to 6m long distance at 2m height (under 30°C)

IRIS Mode

AES

White Balance

ATW

AGC

Auto

Operating Temperature

0°C~40°C

Power Source (±10%)

5V / 1A

Net Weight

0.35 kg

VIDEO



Video Compression

H.264 / MPEG4 / MJPEG

Resolution

SXGA / 720P / VGA / QVGA

Frame Rate

NTSC:30 / PAL:25

Multiple Video Streaming

3 (H.264, MJPEG, MPEG4)

AUDIO



Microphone

Yes

NETWORK



Number of Online Users

1-10

Supported Protocols

DDNS / PPPoE / DHCP / NTP / SNTP / TCP/IP / ICMP / SMTP / FTP / HTTP / RTP / RTSP / UPnP

LAN Speed

10/100 Based-T Ethernet

LAN Port

Yes

Security

  • Multiple user access levels with password
  • IP address filtering
  • Digest authentication

Remote Access

  • Internet Explorer on Windows operating system
  • 16CH Video Viewer on Windows & MAC operating system
  • EagleEyes on iPhone, iPad & Android mobile devices

OTHERS



Mobile Surveillance

Android / iOS

ONVIF Compatible

Yes (Profile S)

Event Notification

FTP / Email

External Alarm Device Connection

Yes

Digital Pan / Tilt / Zoom

Yes

Motion Detection

Yes

RTC (real-time clock)

Yes

Minimum System Requirements

  • Pentium 4 CPU 1.3 GHz or higher, or equivalent AMD
  • 256 MB RAM
  • AGP graphics card, Direct Draw, 32MB RAM
  • Windows 7, Vista & XP, DirectX 9.0 or later
  • Internet Explorer 7.x or later

Note

Human detection sensor built-in

Current Consumption(±10%)

mA

    • SKU
      AVM301
    • Weight
      3 lbs
  • Manufacturer
    AVTECH
  • Camera Signal
    IP
  • Camera Resolution
    1.3 Megapixel
