AP-8TB Louroe Electronics 8 Zone Audio Monitoring Base Station
More products by
Louroe Electronics

AP-8TB Louroe Electronics 8 Zone Audio Monitoring Base Station


(0 reviews)

$792.00

$962.00

Availability In Stock

SKU WECAP-8TB

Product # 23838

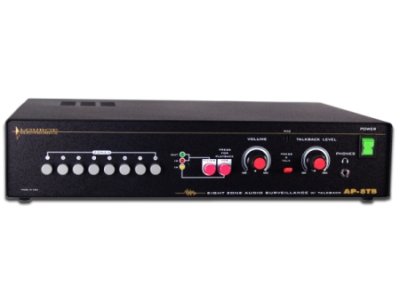

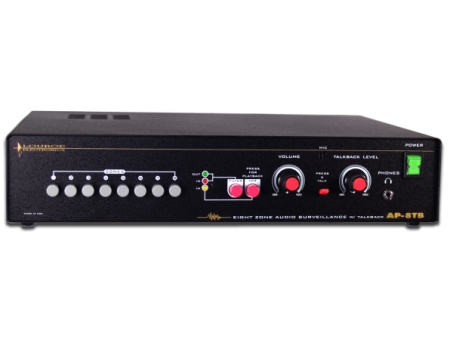

The Model AP-8TB is a four zone audio monitoring base station designed for two-way listen/talkback. As a complete system, any zone can be monitored, by pressing the button switch for the desired zone. The unit contains a 3" built-in speaker for monitoring audio and a built-in microphone for talking back to the remote zone. Each zone has an audio output jack (RCA) for connection to a DVR with multiple audio inputs. All Louroe Speaker/Microphones (Model TLI, TLM, TLMC, TLSP, and TLO) are compatible with the AP-8TB.

Specifications:

  • Model Number - AP-8TB
  • Input Sensitivity (from remote mic) - 0.78Vrms
  • Input Sensitivity (talk back microphone) - -55dB
  • Monitor Power Output - 1.5W @ 8ohm
  • Talkback Power Output - 1.5W @ 70V line
  • Insertion Gain - 2dB @ 1kHz
  • Audio Line Output Impedance - 600ohm or higher
  • Audio Input Impedance - 10kohm
  • Audio Frequency Responce (flat) - 100Hz to 10kHz
  • Audio Frequency Responce (enhanced) - -20dB @ 200 Hz to +8dB @ 3kHz
  • Headphone impedance - 8 to 600ohm
  • Power Input - 120 VAC, 60 Hz
  • Dimensions - 10 1/4"L x 12 1/2"W x 2 1/2"H
  • Weight - 8.5Lbs (3.9 Kg)
