AP-1TB Louroe Electronics Audio Monitoring Base Station - Two-Way
More products by
Louroe Electronics

AP-1TB Louroe Electronics Audio Monitoring Base Station - Two-Way


(0 reviews)

$414.00

$424.00

Availability In Stock

SKU WECAP-1TB

Product # 23824

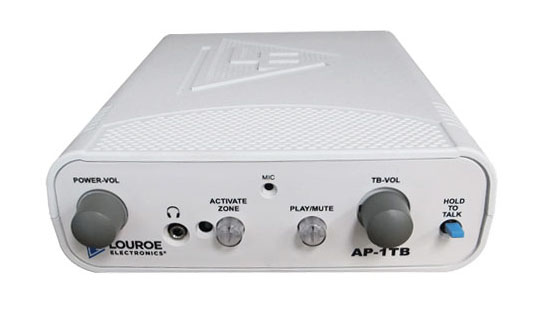

The next generation AP-1TB is a single zone audio monitoring base station with two-way listen/talkback. Audio can be monitored by manually pressing the zone button. It has input-output to a DVR/VCR for recording and contains a speaker for monitoring live audio and playback. A 12 VDC power supply is included.

For two-way listen/talkback, all Louroe Verifact™ Microphone/ Speakers (TLI, TLO, TLM, TLMC, or TLSP) are compatible.

Specifications

  • Input sensitivity (talk-back microphone) - -45 dB
  • Monitor power output - 1W @ 8©
  • Talkback power output(max) - 1W into 70V line
  • Audio output impedance - 600©
  • Audio input impedance - 10k©
  • Audio frequency response - 100 Hz to 10kHz
  • Headphone impedance - 8 to 600©
  • Power input - 12 Vdc, 500mA
  • Dimensions - 6 5/8"W x 7 3/8"D x 2¼”H
  • Weight - 2.25 lbs (1.1kg)
