Analog Advanced Level 8 Channel DVR - Compact Case
More products by
LT Security

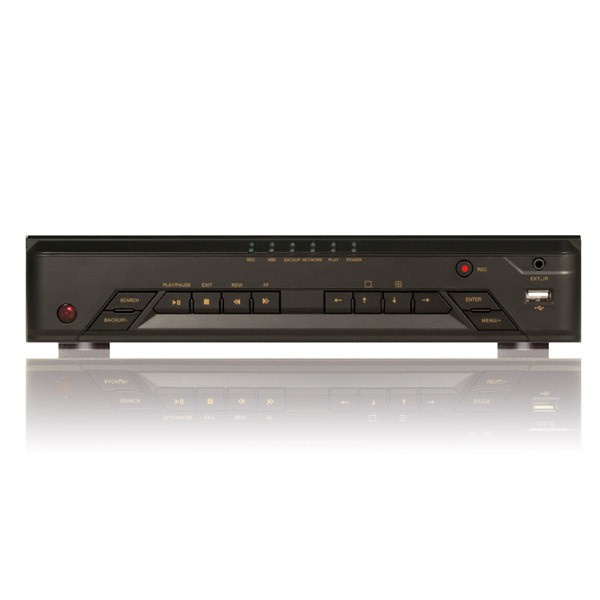

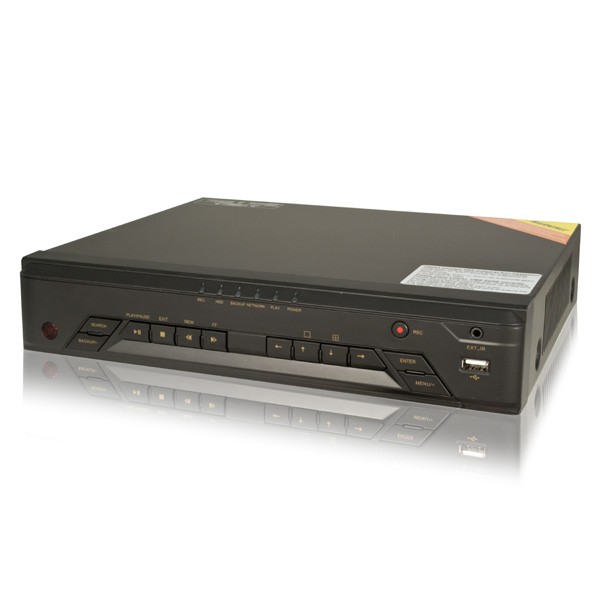

Analog Advanced Level 8 Channel DVR - Compact Case


(0 reviews)

$120.00

$150.00

Availability In Stock

SKU LTD2308SE-C

Product # 86631

Hard Drive #1

  • 8 Channel Digital Video Recorder
  • Video Input: 8CH

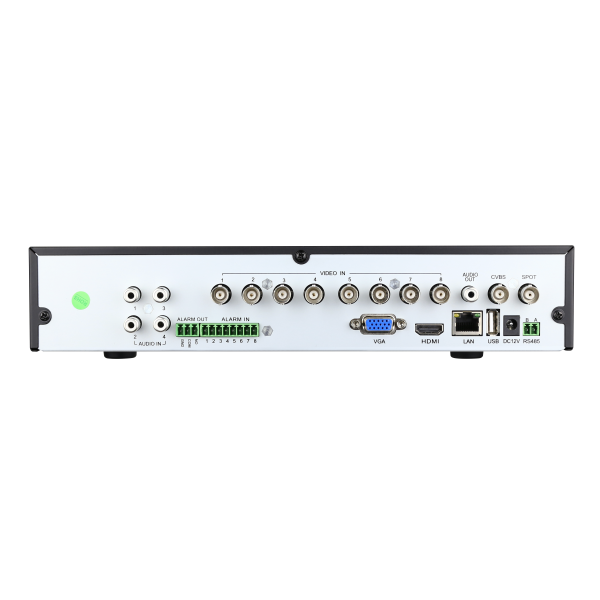

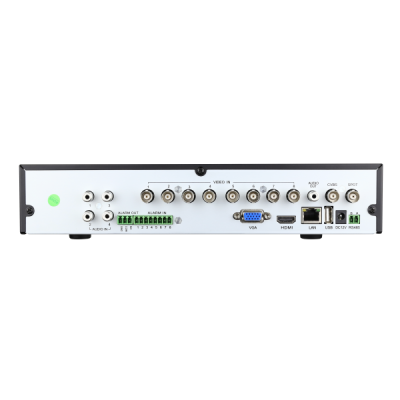

  • Video Output: CVBS, SPOT, VGA/HDMI
  • Pentaplex Operation: Record, Playback, Backup, Live & Remote Acess
  • Realtime Record: 8CH D1
  • Recording Rate: 8CH WD1@15fps
  • Playback Channel: 8CH
  • Video Bit Rate: 768 Kbps ~ 2560 Kbps, or user defined (Max. 2560 Kbps)
  • Audio In/Out: 4CH/1CH, RCA
  • Alarm In/Out: 8/1
  • Dual Stream: Support; Master Stream, Sub-Stream: CIF
  • USB: 2 USB 2.0
  • Network: 10/100M
  • Storage: 1 SATA up to 4TB
  • PTZ: 1 RS485
  • Backup: USB, Network

System

  • Compression FormatStandard H.264
  • OSEmbedded Linux



Video

  •  Input8CH, BNC (1.0Vp-p, 75Ω)
  • Standard Output1*VGA: 1920x1080,1280x1024, 800x600, 1* BNC+1 Spot out
  • Advanced Output1*HDMI : 1080P: 1920×1080/60Hz



Audio

  • Audio Input4CH, RCA (2.0 Vp-p, 1 kΩ)
  • Audio Output1CH  RCA (Linear, 1 kΩ)
  • Bidirectional Talk1-CH, RCA (2.0 Vp-p, 1 kΩ) (using 1ch audio input)



Alarm

  • Alarm in/out8CH/1CH



Recording

  • Recording Resolution15fps@960H / 30 fps@D1
  • Recording ModeSchedule, Manual,  Motion, Sensor



Playback

  • Max Playback Channel8CHSearch Modetime, event, file



Backup

  • USB DiskUSB or SATA



Remote Application

  • Dual StreamSupport; master stream, sub-stream
  • BrowserIE (windows XP/2000/Vista/7) , Safari(Mac OS), Chrome,Firefox
  • CMSYESMobile PhoneBroview for iPad/iPad2/iPhone//Android
  • User Access10users online with professional authority management



Storage

  • HDD1x SATA, up to 3TB



Network

  • Ethernet1, RJ45 10M / 100M Ethernet interface
  • ProtocolTCP/IP,UDP,DHCP,DNS,PPPoE?DDNS?SMTP



Others

  • Power SupplyDC12V Consumption≤ 10 W (without hard disk or DVD-R/W)
  • Operating Temperature-10 ºC ~ 55 ºc
  • Humidity10% ~ 90% humidity
  • Product Dimension300mm ×270mm ×58mm
There have been no reviews


Spec Sheet Spec Sheet (206 KB)
User Manual User Manual (3287 KB)
