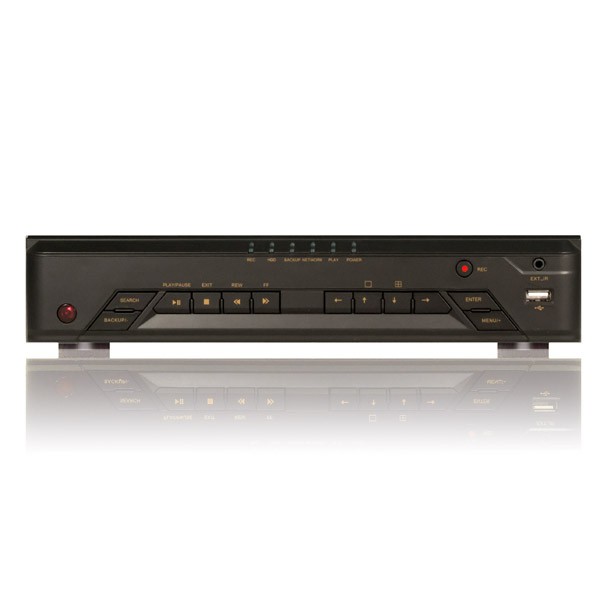

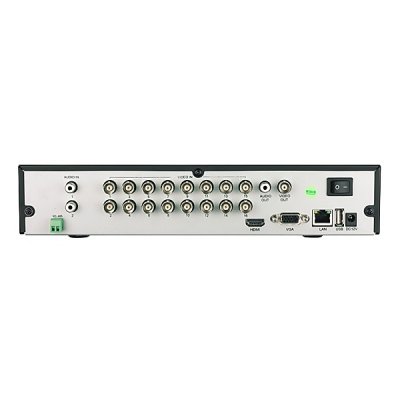

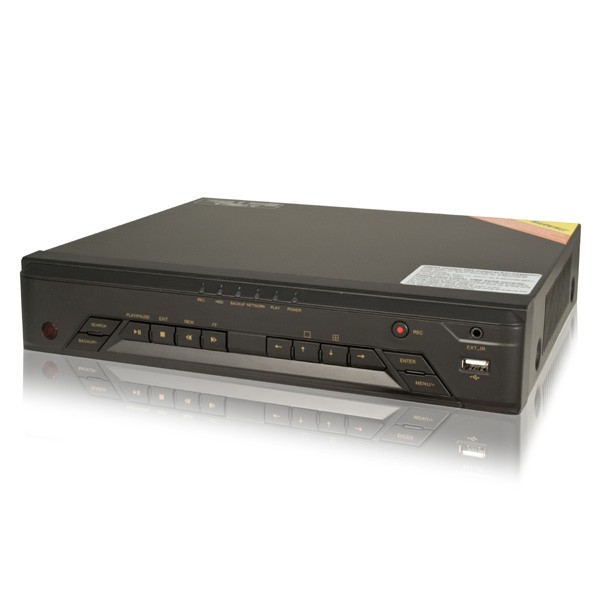

Analog Advanced Level 16 Channel DVR - Compact Case
More products by
LT Security

Analog Advanced Level 16 Channel DVR - Compact Case


(0 reviews)

$125.00

$165.00

Availability In Stock

SKU LTD2316SS-C

Product # 86629

Hard Drive #1

  • 16 Channel Digital Video Recorder
  • Video Input: 16CH
  • Video Output: CVBS, VGA/HDMI
  • Pentaplex Operation: Record, Playback, Backup, Live & Remote Acess
  • Realtime Record: 16CH WD1
  • Recording Rate: 16CH WD1@30fps
  • Playback Channel: 16CH
  • Video Bit Rate: 768 Kbps ~ 2560 Kbps, or user defined (Max. 2560 Kbps)
  • Audio In/Out: 2CH/1CH, RCA
  • Dual Stream: Support; Master Stream, Sub-Stream: CIF
  • USB: 2 USB 2.0
  • Network: 10/100M
  • Storage: 1 SATA up to 4TB
  • PTZ: 1 RS485
  • Backup: USB, Network

System

  • Compression FormatStandard H.264
  • OSEmbedded Linux


Video

  • Input16CH, BNC (1.0Vp-p, 75Ω)
  • Standard Output1*VGA: 1920x1080,1280x1024, 1024x768, 800x600 1*BNC:NTSC:704x480;PAL:704x576
  • Advanced Output1*HDMI : 1080P: 1920×1080/60Hz


Audio

  • Audio Input2CH, RCA (2.0 Vp-p, 1 kΩ)
  • Audio Output1CH  RCA (Linear, 1 kΩ)
  • Bidirectional Talk1CH, RCA (2.0 Vp-p, 1 kΩ) (using 1ch audio input)

Recording

  • Recording Resolution7 fps@960H /D1;30 fps@CIF
  • Recording ModeSchedule,Manual,Motion,Sensor


Playback

  • Max Playback Channel16CH
  • Search Modetime, event, file

Backup

  • USB DiskYes


Remote Application

  • Dual StreamSupport; master stream, sub-stream
  • BrowserIE (windows XP/2000/Vista/7) , Safari(Mac OS), Chrome,Firefox
  • CMSYes
  • Mobile PhoneBroview for iPad/iPad2/iPhone//Android
  • User Access18 users online with professional authority management

Storage

  • HDD1x SATA, up to 3TB

Network

  • Ethernet1, RJ45 10M / 100M Ethernet interface
  • ProtocolTCP/IP,UDP,DHCP,DNS,PPPoE?DDNS?Email

Others

  • Power SupplyDC12V
  • Consumption≤ 10 W (without hard disk or DVD-R/W)
  • Operating Temperature-10 ºC ~ 55 ºc
  • Humidity10% ~ 90% humidity
  • Product Dimension300mm ×270mm ×58mm
There have been no reviews


Spec Sheet Spec Sheet (206 KB)
User Manual User Manual (3287 KB)
