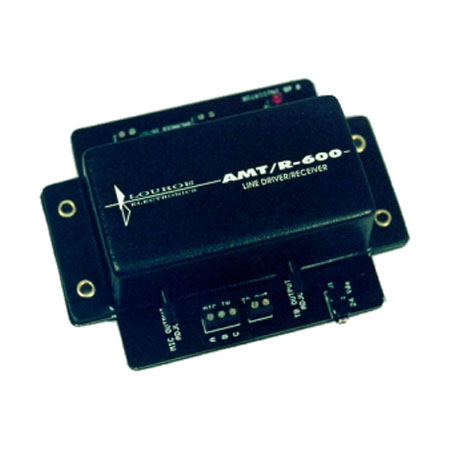

AMT/R-600 Louroe Electronics Line Driver/Receiver
More products by
Louroe Electronics

AMT/R-600 Louroe Electronics Line Driver/Receiver


(0 reviews)

$276.00

$368.00

Availability In Stock

SKU WECAMT/R-600

Product # 23947

A Line Driver and Receiver in one housing that provides two-way talk/listen between the Louroe Speaker/Microphone and Base Station. It contains two circuits. One is a Microphone Line Driver, the other a Line Receiver and Power Amplifier. Line Driver portion takes audio signals from the microphone and amplifies it to 0 dB @ 600 Ohms balanced, for input over fiber optics, or telephone line. Line Receiver portion receives audio at 0 dB @ 600 Ohms and amplifies it at a maximum of 4W output into an 8 Ohm speaker. A built-in 70V transformer provides constant voltage the Louroe Speaker/Microphone. 24 Vdc plug-in power supply included. NOTE: If one-way listen is required rather than two-way talk.

Specifications:

  • Model Number - AMT/R-600
  • Driver Input - -22dB from Louroe Microphone
  • Driver Output - 0dB @ 600ohm balanced
  • Driver Power Consumption - 100mA
  • Driver Frequency Response - 100Hz to 10kHz
  • Receiver Input - 0dB @ 600ohm balanced
  • Receiver Output - 2W into 8ohm
  • Receiver Power Consumption - 300mA
  • Receiver Frequency Response - 100Hz to 10kHz
  • Supply Voltage - 15VDC, 1A
  • General Dimensions - 6 1/8"L x 4 5/8"W x 1 7/8
  • General Weight - 10.8 oz.
