ALA-8 Louroe Electronics 8 Zone Sound Activated Alarming Audio Base Station
More products by
Louroe Electronics

ALA-8 Louroe Electronics 8 Zone Sound Activated Alarming Audio Base Station


(0 reviews)

$2,437.50

$3,250.00

Availability In Stock

SKU WECALA-8

Product # 23862

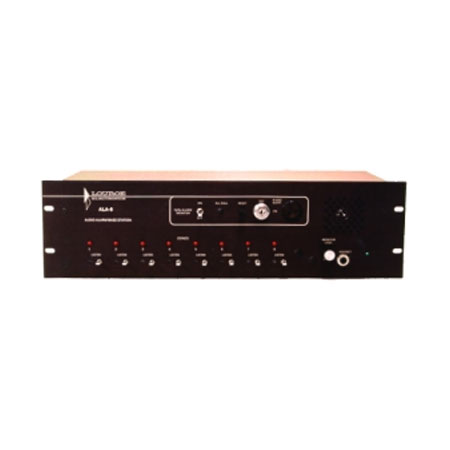

Model ALA-8 is an eight zone alarming base station designed to provide sound activated audio monitoring, when interfaced with Louroe microphones. Each zone has a variable threshold level (set by installer or owner) based on frequency and sound pressure that activates when a sound exceeds the set threshold level. A short alarm and lighted LED identifies the zone, along with a relay contact for activating a camera or other annunciation. Model ALA-8 is rack mountable. Compatible with all Louroe microphones. For one-way listen (no talkback).

Specifications:

  • Model Number - ALA-8
  • Input impedance (zone) - 10kohm
  • Input sensitivity (zone) - 0.78 Vrms produces 2W across an 8ohm load
  • Frequency response - 100Hz-10kHz
  • Output impedance (zone) - 70V Line
  • Output impedance (headphone) - 8 to 600 ohm
  • Output impedance (recorder) - 600ohm or higher
  • Power Consumption - 12VA
  • Power Input - 120VAC, 0.5A, 60Hz
  • Operating temperature range - +32F to +122F
  • Panel finish - Black Anodized
  • Size - 19"W x 5 1/4"H x 9 1/2"D
  • Weight - 10LBS
