GV-UNP2500 2MP H.264 Super Low Lux WDR Pinhole Camera
More products by

GV-UNP2500 2MP H.264 Super Low Lux WDR Pinhole Camera

(0 reviews)

Availability In Stock


Product # 86144

GeoVision Authorized Distributor Warranty

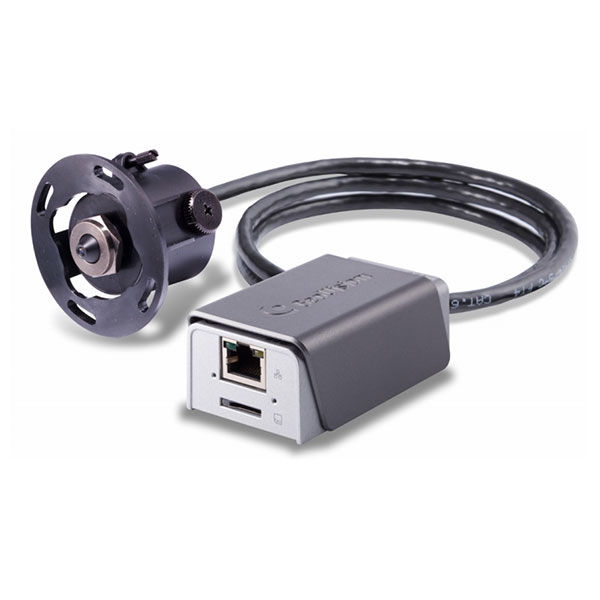

This pinhole security camera from GeoVision is perfect for hidden surveillance. It fits discreetly behind hidden panels or peepholes and is ideal for use in banks, hotels, retail stores and offices. The camera records high resolution, 2mp footage and is equipped with infrared so it can continue recording even in very low light. It also comes equipped with wide dynamic range and motion detection.



  • 1/2.8" progressive scan super low lux CMOS
  • Minimum illumination at 0.02 lux
  • Dual streams from H.264 and MJPEG
  • Up to 30 fps at 1920 x 1080
  • Megapixel lens
  • Day and night function (electronic)
  • Built-in micro SD card slot (SD/SDHC) for local storage
  • NAS recording
  • Recording assigned by GV-Edge Recording Manager (Windows & Mac)
  • One-way audio
  • 3D DNR (Digital Noise Reduction)
  • Wide Dynamic Range (WDR)
  • Defog
  • Motion detection
  • Tampering alarm
  • Privacy mask
  • Text overlay
  • IP address filtering
  • PoE (IEEE 802.3af)
  • Supports iPhone, iPad, Android & 3GPP
  • 31 languages on Web interface
  • ONVIF (Profile S) conformant
Camera GV-UNP2500
Image Sensor 1/2.8" progressive scan super low lux CMOS
Picture Elements 1920 (H) x 1080 (V)
Shutter Speed Automatic / Manual (1/500 ~ 1/8000 sec.)
White Balance Automatic / Manual (2800K ~ 8500K)
S/N Ratio 52 dB
Megapixel 2 MP
Lens Type Fixed lens
Focal Length 3.7 mm
Maximum Aperture F/1.2
Mount M12
Image Format 1/2.7"
Operation Focus Fixed
Zoom Fixed
Iris Fixed
Video Compression H.264, MJPEG
Video Streaming Dual streams from H.264 and MJPEG
Frame Rate 30 fps at 1280 x 1024
* The frame rate and performance may vary depending on the number of connections and data bitrates (different scenes).
Audio Compression AAC 32K (optional)
Audio Support One-way Audio
Video Resolution
Main Stream 4:3 1600 x 1200, 1280 x 960
16:9 1920 x 1080, 1280 x 720
5:4 1280 x 1024
Sub Stream 4:3 640 x 480, 320 x 240
16:9 640 x 360, 448 x 252
5:4 640 x 512, 320 x 256
Interface 10/100 Base-T Ethernet, RJ-45 connector
Temperature Detector Yes
Camera Adjustment - Rotate 0° ~ 360°
Connectors Power PoE (IEEE 802.3af)
Ethernet RJ-45 connector
Audio 1 In (built-in microphone)
Local Storage Micro SD card slot (SD/SDHC, SD version 2.0 only, Class 10) *SDXC and UHS‐I card types are not supported.
Camera Unit Connect RJ-12
LED Indicator 4 LEDs: Link, ACT, Camera Status, RJ‐12 Status
Environment Temperature -5°C ~ 50°C (-23°F ~ 122°F)
Humidity 10% ~ 90% (non-condensing)
Power Source PoE (IEEE 802.3af)
Max. Power Consumption 4.8 W
Dimensions Main Body 78.5 x 47.36 x 32.5 mm (3.09" x 1.86" x 1.28")
Cable Length 1 m (3.28ft)
Weight (with main body mount) 210 g (0.46 lb)
Regulatory CE, FCC, C-Tick, RoHS compliant
Power over Ethernet
PoE Standard High Power Over Ethernet (PoE++) / PD
PoE Power Supply Type Mid-Span
PoE Power Output DC 48V, 350mA (15.4 W Max.)
Web Interface
Installation & Management Web-based configuration
Firmware Upgrade Remote upgrade through Web Browser
GV-IP Device Utility included in the Software DVD
Access from Web Browser Live View, Video Recording, Video Quality, Bandwidth Control, Image Snapshot, Audio, Picture in Picture, Picture and Picture, Privacy Mask, Tampering Alarm, Text Overlay
Language Arabic / Bulgarian / Czech / Danish / Dutch / English / Finnish / French / German / Greek / Hebrew / Hungarian / Indonesian / Italian / Japanese / Lithuanian / Norwegian / Persian / Polish / Portuguese / Romanian / Russian / Serbian / Simplified Chinese / Slovakian / Slovenian / Spanish / Swedish / Thai / Traditional Chinese / Turkish
Network Storage GV-NVR, GV-System, GV-Recording Server
Smart Device Access • GV-Eye for Android and iOS
• Embedded 3GPP/ISMA browser
Live Viewing IE, GV-MultiView
CMS Server support GV-Control Center, GV-Center V2, GV-Vital Sign Monitor

Note: Specifications are subject to change without notice.

  • Ordering Part. Number: 110-UNP2500-000
  • Model Number: GV-UNP2500
  • GV SKU Number: 84-UNP2500-0010



Specifications are subject to change without notice.


  • Pinhole Camera
  • 1 m (3.28 ft) RJ-12 Cable
  • Camera Adhesive Tape x 2
  • Installation Sticker
  • Main Body Mount
  • Main Body Adhesive Tape
  • M3 Screw x 2
  • M2 Screw
  • GV-IPCAM H.264 Software DVD
  • GV-NVR Software DVD
  • Warranty Card
Specifications are subject to change without notice.
Model No. / Name Details
GV-PA191 PoE Adapter The GV-PA191 PoE adapter is designed to provide power and network connection to the cameras over a single Ethernet cable.
GV-POE Switch The GV-POE Switch is designed to provide power along with network connection for IP devices. The GV-POE Switch is available in various models with different numbers and types of ports.
10 m (32.8 ft) RJ-12 Cable A 10 m (32.8 ft) RJ-12 Cable can be purchased to connect the camera lens and the main body.
