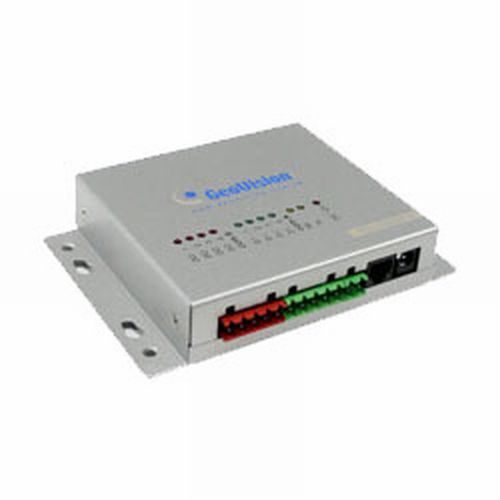

84-IOB04-100 Geovision 4 In/Out Relay Box
More products by
Geovision

84-IOB04-100 Geovision 4 In/Out Relay Box


(0 reviews)

$100.50

$134.00

Availability In Stock
Ships within 1 to 12 Hours

SKU WEC84-IOB04-100

Product # 25343

  • Model Number: GV-IO-BOX-4
  • Manufacturer Part Number: 84-IOB04-100
  • A combination of both GV-I/O Box and GV-Relay Box.
  • 4 inputs and 4 outputs are provided.
  • A USB port is provided for PC connection, and it is used for 30 DC output voltage.
  • Up to 9 GV-I/O USB Boxes can be chained together. See Important Notice for details.

The GV-IO BOX 4 USB Box provides 4 inputs and 14 relay outputs. It supports both DC and AC output voltages, and provides a USB port as well.

Specifications:

  • Model Number - 84-IOB04-100
  • Input - 4
  • Input Signal - 9-30V AC/DC
  • Relay Output - 4
  • Relay Status - Normal Open
  • Relay Capacitance - USB: 30V DC, 3A. RS-485: 125 / 250V AC, 3A, 30V DC, 3A.
  • DC IN - DC 12V, 1A
  • Address - 1-15
  • Environmental Conditions - 0~50 degree C , 5%~95% (non-condensing)
  • Dimensions - 180 (W) x 27 (H) x 183 (D) mm

84-IOB04-100 Spec Sheet
