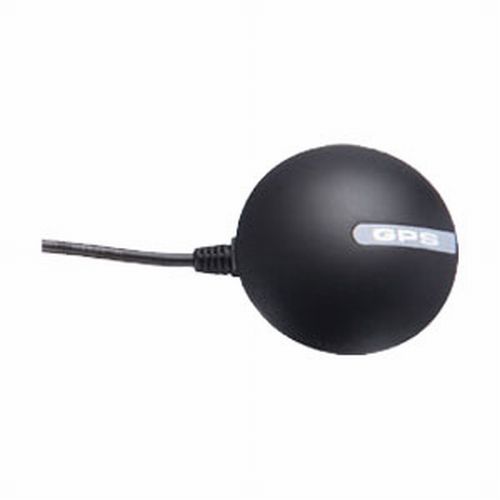

81-GPURT-001 Geovision GPS Module for Video Server
More products by
Geovision

81-GPURT-001 Geovision GPS Module for Video Server


(0 reviews)

$60.00

$114.00

Availability In Stock
Ships within 1 to 12 Hours

SKU WEC81-GPURT-001

Product # 25355

GeoVision Authorized Distributor Warranty

The GV-GPS Receiver can work with GV-Video Server to perform GPS vehicle tracking. It operates with a 1575.42 MHz frequency and has 20 channels of tracking. The tracker is operational at up to 60,000 foot altitude and can withstand extreme temperatures.

  • Model Number: GV-GPS UART
  • Manufacturer Part Number: 81-GPURT-001
  • GPS Module for Video Server

Specifications:

  • Model Number - GV-GPSUART
  • Frequency - L1, 1575.42 MHz
  • C/A Code - 1.023 MHz chip rate
  • Channels - 20 channel all-in-view tracking
  • Sensitivity - -159 dBm
  • Position Horizontal - 10m 2D RMS (SA off)
  • Velocity - 0.1m/sec 95% (SA off)
  • Time - 1 micro-second synchronized to GPS time
  • WAAS enabled - 5m 2D RMS
  • Datum - WGS-84
  • Hot Start - 1 sec. average (with ephemeris and almanac valid)
  • Warm Start - 38 sec. average (with almanac but not ephemeris)
  • Cold Start - 42 sec. average (neither almanac nor ephemeris)
  • Reacquisition - 0.1 sec. average (interruption recovery time)
  • GPS Protocol - Default: NMEA 0183 (Secondary: SiRF binary)
  • GPS Output Data - SiRF binary >> position, velocity, altitude, status and control ; NMEA 0183 protocol supports command: GGA, GSA, GSV, RMC, VTG, GLL (VTG and GLL are optional)
  • GPS Transfer Rate - Default : 9600,n,8,1 for NMEA
  • Acceleration Limit - Less than 4g
  • Altitude Limit - 18,000 meters (60,000 feet) max.
  • Velocity Limit - 515 meters/sec. (1,000 knots) max.
  • Jerk Limit - 20 m/sec**3
  • Operating Temperature - -40°~ 85°C
  • Storage Temperature - -40°~ 85°C
  • Humidity - Up to 95% non-condensing
  • Power Voltage - 4.5V ~ 6.5V
  • Power Current - 80mA typical (Continuous mode)
  • Dimensions - 53mm diameter , 19.2mm height
  • Cable Length - 2.7m

GV-GPSUART Spec Sheet
