16 CH DVR with 8 HD 1080P Security Universal ACT  Dome & HD DVR Kit for Business Professional Grade FREE 1TB Hard Drive
More products by
iMaxCamPRO

16 CH DVR with 8 HD 1080P Security Universal ACT Dome & HD DVR Kit for Business Professional Grade FREE 1TB Hard Drive


(0 reviews)

$1,148.50

$1,950.00

Availability In Stock

SKU ACT-8CHD-1080P-KIT

Product # 86321

Hard Drive #1

Hard Drive #2

Power supply

Cables

Monitor

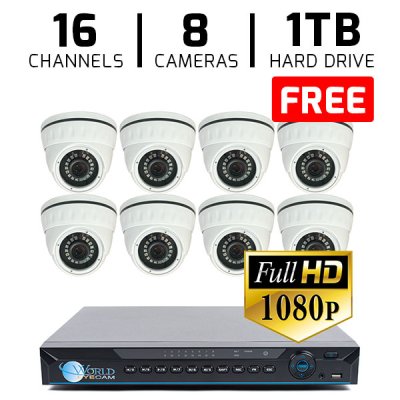

This kit has eight universal ACT dome security cameras recording up to 1080p resolution. The Universal ACT Dome Camera has four video output options: HD-CVI, HD-TVI, AHD and Analog. Data is transmitted to the included 16 channel DVR via RG59 coaxial cable where it can be stored on an optional HDD or viewed live. The kit also includes the necessary power supply and software for remote monitoring.







What's Included

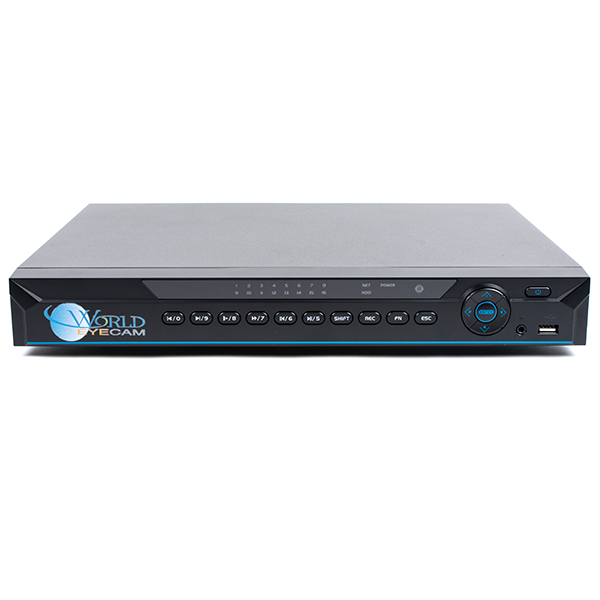

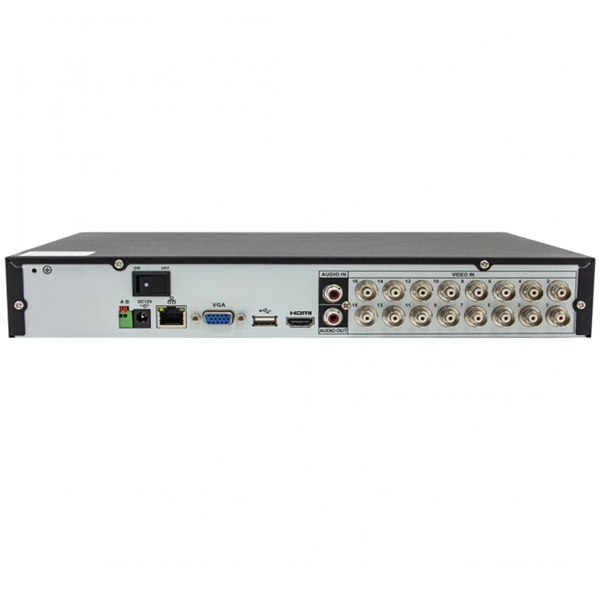

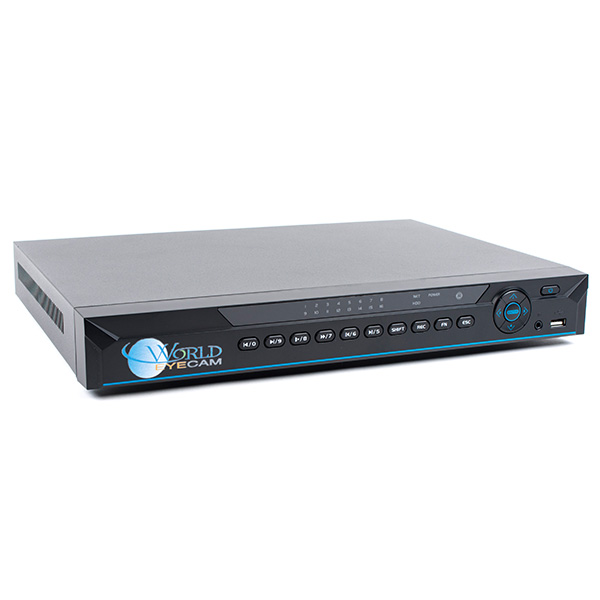

  • (1) HD-CVI 1080p 30FPS 16 Channel DVR Recorder
  • (8) Universal ACT 2MP (1080P) Security Domes Cameras
  • (1) FREE 1TB Hard Drive
  • (1) FREE 500 FT Spool RG59 Siamese CCTV Coaxial Cable w/ connectors
  • (1) FREE 4 Camera Power Supply
  • Free mobile apps and monitoring software
  • Free lifetime technical support
  • Free 1 Year Warranty

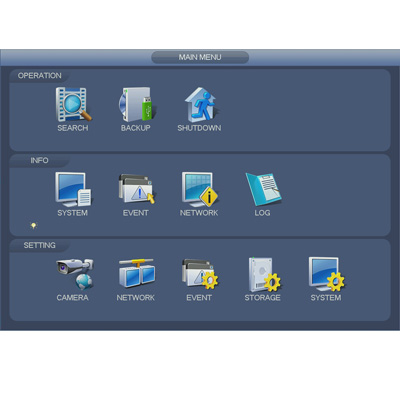

SmartPSS software
Click/Tap on image for a more detailed view.





(CLICK HERE) To view image at full 1080P



(CLICK HERE) To view image at full 1080P



Why HD-AVS?

HD 1080p vs 720p vs 960h Resolution

HD 1080p vs 720p vs 960h Resolution
CLICK ON IMAGE TO ENLARGE IT

DVR Features

H.264 Real-time Recording and Playback

H.264 Real-time Recording and Playback: Its H.264 compression greatly reduces the size of your digital video files without compromising image quality (compared to other compression standards such as M-JPEG and MPEG-4). H.264 is a stable, proven compression technology, which offers unbeatable recording picture quality while at the same time saving you valuable hard drive storage space.

Remote Monitoring

Remote Monitoring: Don’t have immediate access to your NVR? Then don’t worry. You can effortlessly log onto your recordings by accessing them on any compatible internet ready device (Such as iPhone 6, iPhone 6 Plus, iPhone, iPad, iPad mini, and Androids devices).

Central Monitoring System

Central Monitoring System: Have more than one location? Well accessing each one of them on a different IP address is a thing of the past with our standard CMS software that allows you to painlessly link an almost unlimited number of recorders and cameras all to the same IP Address.

Multiple Playback and Recording Options

Multiple Playback and Recording Options: The multiple recording options allows you to set your NVR to record on a set schedule, continuous around-the-clock recording or to further conserve hard drive space only when motion is detected. You can also select the number of cameras to view on one screen or hide certain ones from other users using the multiple playback features.

E-map Function Support

E-map Function Support: The E-map feature provides a camera icon that represents the location of cameras on a map of a building or area, helping you to strategically place your cameras in the spots where surveillance is most needed. The detail this function provides is essential in saving time and the hassle of repositioning your cameras to achieve the desired viewing space.

Push Alerts & Automatic E-mail

Push Alerts & Automatic E-mail: Setup your DVR to automatically send you an e-mail alert or a Push notification with video clip every time there is a motion triggered event. This enables you to quickly take action when an incident has occurred.

3D Intelligent Positioning

3D Intelligent Positioning: This features let you digitally control your PTZ cameras (move up, move down, move left, move right, zoom in and zoom out) from your monitor and mobile applications.

SPECIFICATIONS


Model IMAX-1U-TRI-16CVI-V2
Main Processor Embedded processor
Operating System Embedded LINUX
Camera Features
Input 16 channel, BNC
Standard HDCVI 1080P / 720P HDCVI Camera
Standard Analog NTSC ( 525Line, 60f/s ) , PAL ( 625Line, 50f/s )
Standard IP 1080P /720P /D1 / CIF IP Camera
Audio
Input 4 channel, RCA
Output 1 channel, RCA
Two-way Talk Reuse audio input / output channel 1
Display
Interface 1 HDMI, 1 VGA
Resolution 1920×1080, 1280×1024, 1280×720, 1024×768, 800×600
Display Split 1/4/8/9/16
Privacy Masking 4 rectangular zones (each camera)
OSD Camera title, Time, Video loss, Camera lock, Motion detection, Recording
Recording
Video/Audio Compression H.264/G.711
Resolution 1080P ( 1920×1080 ) / 720P ( 1280×720 ) / 960H ( 960×576 / 960×480 ) / D1 / 4CIF ( 704×576/704×480 ) / CIF ( 352×288 / 352×240 ) / QCIF ( 176×144 / 176×120 )
Record Rate Main Stream 1080P ( 1~12/15fps ) / 720P / 960H / D1 / HD1 / 2CIF / CIF ( 1~25/30fps )
Record Rate Extra Stream CIF / QCIF (1~25/30fps ), D1 ( 1~12/15fps )
Bit Rate 48~4096Kb/s
Record Mode Manual, Schedule(Regular(Continuous), MD), Stop
Record Interval 1~60 min (default: 60 min), Pre-record: 1~30 sec, Post-record: 10~300 sec
Play Back
Playback Channel 1/ 4/ 9/ 16
Search Mode Time/Date, Alarm, Motion Detect & Exact search (Accurate to the Second), Smart search
Playback Function Play, Pause, Stop, Rewind, Fast play, Slow play, Next file, Previous file, Next camera, Previous camera, Full screen, Repeat, Shuffle, Backup Selection, Digital Zoom (any size)
Backup Method Flash Drive, USB HDD, Network Download
Video Detection & Alarm
Trigger Events Recording, PTZ, Tour, Alarm out, Video Push, Email, FTP, Spot, Snapshot, Buzzer & Screen tips
Video Detection Motion Detection, MD Zones: 396(22×18), Video Loss & Camera Blank
Alarm Input 8 channel
Relay Output 3 channel
Network
Ethernet RJ-45 port (10 / 100M / 1000M)
Network Functions Monitor, PTZ Control, Playback, System Setting, File Download, Log Info
Protocol IPv4/IPv6, HTTP, HTTPS, SSL, TCP/IP, UDP, UPnP, ICMP, IGMP, SNMP, RTSP, RTP, SMTP, NTP, DHCP, DNS, PPPOE, DDNS, FTP, IP Filter, QoS, Bonjour
Max. User Access 128 User
Smart Phone iPhone, iPad, Android, Windows Phone
Storage
Internal HDD 2 SATA ports, up to 6TB Each HDD
E-SATA N/A
Auxiliary Interface
USB Interface 2 ports(1 Rear), USB2.0
RS485 1 port, For PTZ control
General
Power Supply DC12V/4A
Power Consumption 15W ( without HDD )
Working Environment -10°C ~+55°C / 10%~90%RH / 86~106kpa
Dimension ( W×D×H ) 1U, 375mm×285mm×55mm
Weight 2.35KG(without HDD)

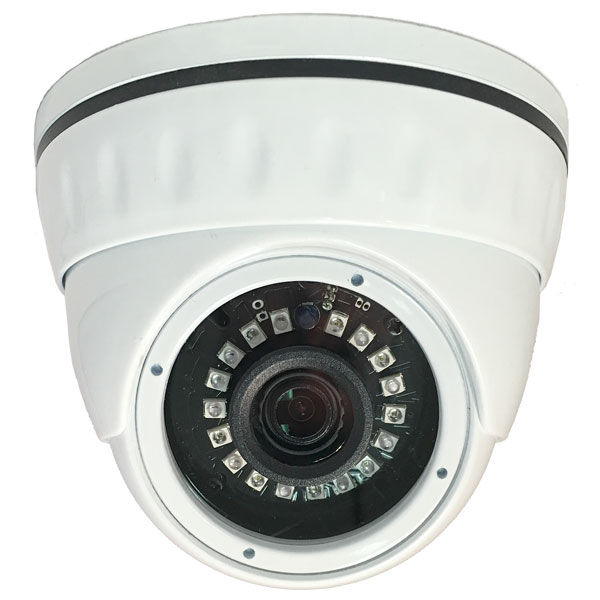

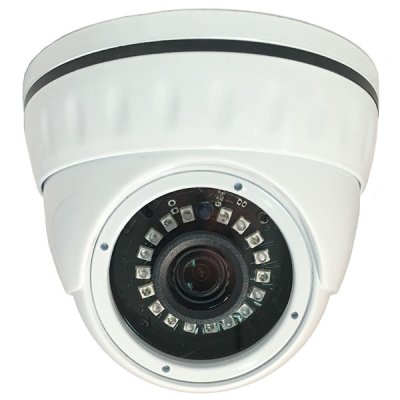

The Universal ACT Dome Camera has four video output options: HD-CVI, HD-TVI, AHD and Analog. This technology makes it ideal for the customer transitioning from analog to high definition surveillance. The security camera can record up to a 2 Megapixel resolution and is equipped with a 3.6mm Fixed Lens. It also can see up to 65 feet (20 meters) away in total darkness thanks to the Night Vision.





Product Features

  • QSD support
  • 12V DC 500Ma
  • 1080P resolution
  • Fixed 3.6mm lens
  • 65 feet of Night Vision
  • IP67 Rated
  • 1/2.9" SONY 2.4MP CMOS Sensor
  • Video output Options: HD-CVI, HD-TVI, AHD, Analog (CVBS)



SPECIFICATIONS


Model DM-TVI-CVI-AHD-960H
Camera
Image Sensor 1/2.9" SONY 2.4MP CMOS Sensor
Resolution 1080P
Signal System PAL / NTSC
Minimum Illumination 0.001 Lux/F1.2
S/N Ratio More than 50dB
Synchronous System Internal
IR Distance 65 Feet (with Φ5 (12µ) x 24PCS Infrared LED)
IR Power On Photodiode AUTO Control
Video Output AHD / CVI / CVBS / TVI
Power / Current DC12V (+/-10%) / 500mA
Lens Board Lens 3.6mm
Weather Proof IP67 Rated
Dimension (mm) Φ 94 x 69(H)
Weight (g) 400
Operating Conditions -10~+50? RH95% MAX

Camera Features



4 Technologies in 1 Camera: Hold five seconds to switch between HD-CVI, HD-TVI, AHD and Analog
