55-RE352-110 Geovision Card Reader 13.56Mhz ISO14443A
More products by
Geovision

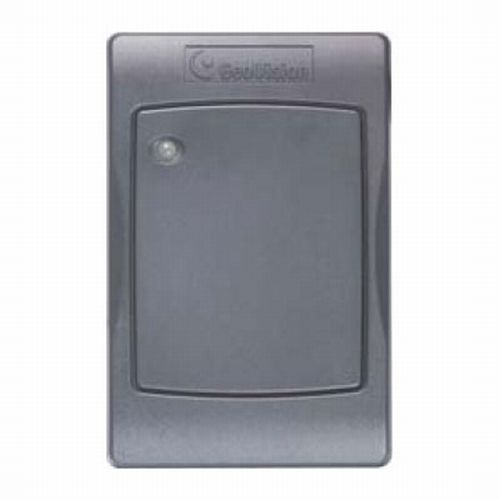

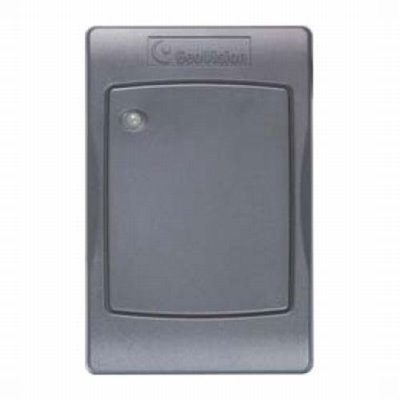

55-RE352-110 Geovision Card Reader 13.56Mhz ISO14443A


(0 reviews)

$60.00

$80.00

Availability Out of Stock
Ships within 1 to 12 Hours

SKU WEC55-RE352-110

Product # 25587

GeoVision Authorized Distributor Warranty

The GV-Reader-1356 supports a 13.56 Mhz for ISO14443A frequency. It uses a RS485 9600bps communication type. When a card is read successfuly the reader will display a green LED light and there is also a beeper option with automatic or user mode setup.

  • Model Number: GV-READER-1356
  • Manufacturer Part Number: 55-RE352-110
  • Support 13.56Mhz for ISO14443A
  • Support Wiegand interface
  • Support RS485 9600bps communication type
  • Red / Green LED and Beeper with auto / user mode setup



Specifications:

  • Model Number - GV-READER-1352
  • CPU - 8bit microprocessor< /LI>
  • Frequency - 13.56MHz for ISO14443A
  • Wiegand Interface - Distance 30m
  • Power - DC 7.5~12V
  • LED - Red, Green LED
  • Beeper - Buzzer
  • RS485 - 9,600 bps, connect up to 8 GV-Readers
  • Color - Black
  • Operating Temperature - 0 ~ 65°C
  • Operating Humidity - 10 ~90% RH (non-condensing)
  • Dimension - 75 (W) x 115 (H) x 15 (T) mm
  • Weight - 150g
  • Certification - CE, FCC, RoHS

55-RE352-110 Spec Sheet
