4 Ch NVR & 4 HD 3 Megapixel IR Dome With Audio Mic  Kit for Business Professional Grade
More products by
iMaxCamPRO

4 Ch NVR & 4 HD 3 Megapixel IR Dome With Audio Mic Kit for Business Professional Grade


(0 reviews)

$1,574.00

$2,649.00

Availability In Stock
Ships Same Day

SKU NVR-4404-P-4CH-AD-KIT

Product # 85981

Hard Drive #1

Hard Drive #2

CAT5 CABLE

Monitor

This top of the line kit not only captures video but audio as well. It includes 4 high definition 3 megapixel surveillance cameras, each one with a built-in mic. All footage is recorded onto the included four channel NVR which comes with a pre-installed 1TB HDD and PoE ports. The kit also includes the necessary CAT5 network cables and free monitoring software.



HD 1080p vs 720p vs 960h Resolution


SmartPSS software
Click/Tap on image for a more detailed view.

  (CLICK HERE) for full View



(CLICK HERE ) for full screen

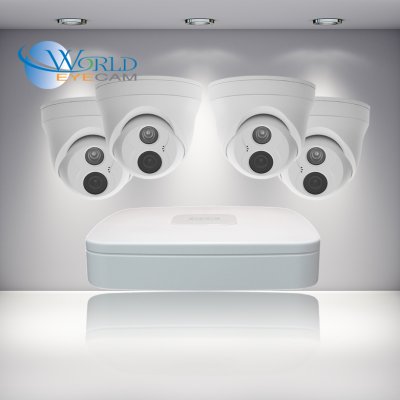

What’s Included:

· (1) 4 Channel NVR Recorder with built in PoE power
· (4) Vandal Resistant Dome Cameras with built in Mic
· (4) Free 100' CAT5 Network Cable
· Free mobile apps and monitoring software
· Free lifetime technical support
· Free 1 Year Warranty

Key Features:

· 4 Channel NVR: Record 4 individual 720P or 1080P IP cameras directly onto the NVR or remotely.

· Real-Time HD 1080P Resolution: Enjoy next generation 1080P High Definition images that provide more vivid detail on your recordings.

· 4 Integrated PoE Ports: Power your cameras with your NVR through the integrated PoE Ports.

· HDMI & VGA Ports: Take full advantage of high definition video by using either HDMI or VGA cables.

· Remote Monitoring through our Free Apps: Download our free apps and view live footage and recordings right on your compatible smartphone or tablet.

· PC and Mac Compatible: Take advantage of the flexibility that our systems offer and review your recordings from any Mac or PC.

· Easy Backup Options: Save footage directly to a USB flash drive or to your PC in seconds flat. Options are also available to backup footage simultaneously to external SATA drives or FTP servers on your network, in the case that your main HDD should fail.

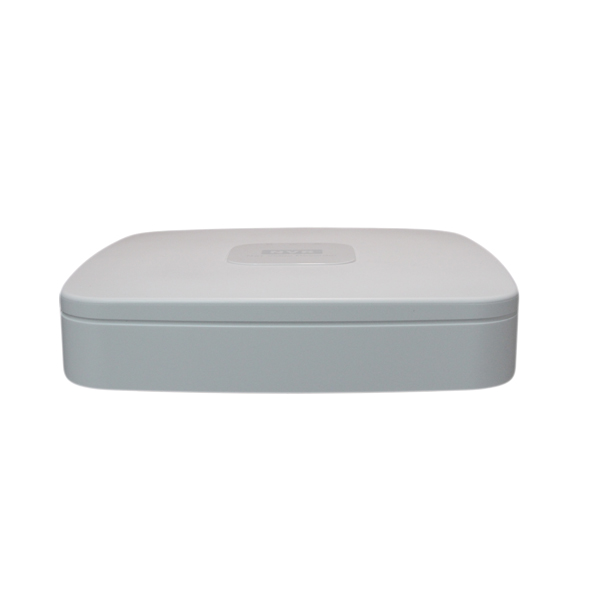

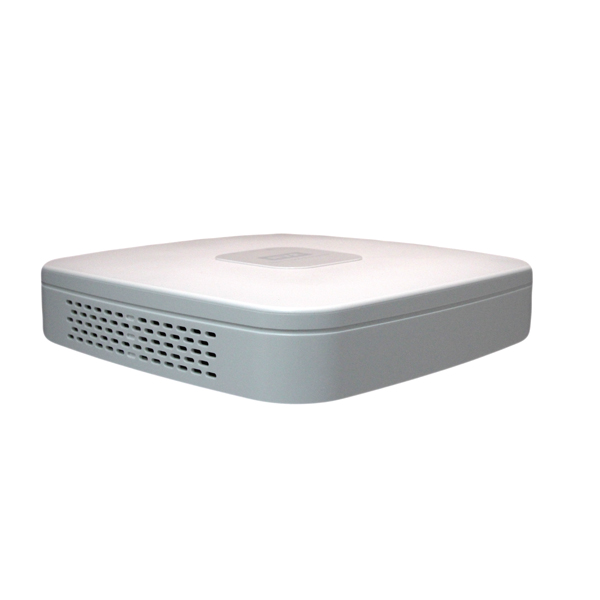

iMaxCam PoE NVR Features:

· 4 Channel Network Video Recorder, 4 PoE Ports
· Up to 4 Channel Realtime
· Ability to record 240fps @ 1080P, 480fps @ 720p or 960fps @ D1 resolution
· All Channel Simultaneous Real Time Playback
· Central Monitoring System
· Supports 2 SATA HDD, each up to 6TB, USB2.0 ports
· Supports iMaxCam, Geovision, Arecont Vision, AXIS, Canon, Vivotek, Dynacolor, Panasonic, Samsung, Sanyo, Sony and ONVIF Compatible cameras
· IP Search Tool to automatically discover cameras on the network
· Built In Web Server, CMS (PSS) & iMaxCam (Smart Phone)

Additional DVR Features:

Plug and Play right out the Box: The simple to use instructions and setup seamlessly allow you to turn on your NVR recorder, plug in your cameras and the system is ready to record! No need to go through and setup any of the standard setting’s since the NVR will automatically configure any of iMaxCamPro cameras attached to the PoE ports.
Easy Plug and Play Installation


H.264 Real-time Recording and Playback: Its H.264 compression greatly reduces the size of your digital video files without compromising image quality (compared to other compression standards such as M-JPEG and MPEG-4). H.264 is a stable, proven compression technology, which offers unbeatable recording picture quality while at the same time saving you valuable hard drive storage space.
h.264 Compression


Remote Monitoring: Don’t have immediate access to your NVR? Then don’t worry. You can effortlessly log onto your recordings by accessing them on any compatible internet ready device.
Free Remote Access Mobile Apps for Android, iPhone and tablets



Central Monitoring System: Have more than one location? Well accessing each one of them on a different IP address is a thing of the past with our standard CMS software that allows you to painlessly link an almost unlimited number of recorders and cameras all to the same IP Address.
Free CMS Software PSS


Multiple Playback and Recording Options: The multiple recording options allows you to set your NVR to record on a set schedule, continuous around-the-clock recording or to further conserve hard drive space only when motion is detected. You can also select the number of cameras to view on one screen or hide certain ones from other users using the multiple playback features.
Motion Detection or Around the Clock Recording


E-map Function Support:
The E-map feature provides a camera icon that represents the location of cameras on a map of a building or area, helping you to strategically place your cameras in the spots where surveillance is most needed. The detail this function provides is essential in saving time and the hassle of repositioning your cameras to achieve the desired viewing space.
Emap function for expansive properties like a college campus


Push Alerts & Automatic E-mail: Setup your NVR to automatically send you an e-mail alert or a Push notification with video clip every time there is a motion triggered event. This enables you to quickly take action when an incident has occurred.
Push Notification or E-Mail Alerts are easy to configure

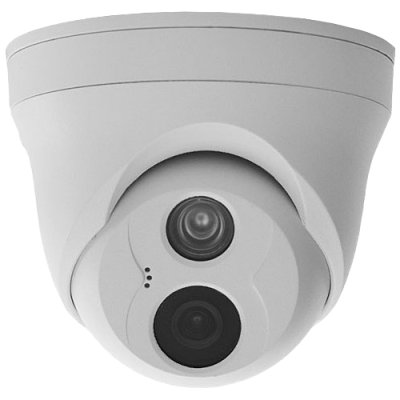

Megapixel IP Dome Cameras: The IP Cameras record directly to all of our iMaxCamPro NVR Systems. The cameras capture a crisp and clean 720p standard image resolution, resulting in an image quality many times higher than analog cameras.
Megapixel quality means catching the small details


Vandal Proof: The vandal proof housing built around these cameras deliver that added satisfaction that they are built to last in any life situation.
Vandal resistant Dome camera


Weather Resistant Indoor/Outdoor Dome Camera: The camera enclosure is built to withstand even the harshest of conditions including ultra heavy rain, snow, and extreme hot weather conditions.
IP66 rated for indoor or outdoor use

Custom System Design:
Worldeyecam offers free consultation and system design, so if the bundled kits don't have what you need don't hesitate to call us! 1-888-211-2288 Monday through Friday 8AM to 5PM Pacific time.
Free System Design and Consultation

Product Features

  • Up to 4 channel with 1080P realtime live view
  • H.264/MJPEG dual codec decoding
  • Max 200Mbps incoming bandwidth
  • Up to 5Mp resolution preview & playback
  • HDMI/VGA simultaneous video output
  • 4 channel synchronous realtime playback, GRID interface
  • Support Multi-brand network cameras: IMaxCamPro, Arecont Vision, AXIS, Bosch, Brickcom, Canon, CP Plus, Dynacolor, Honeywell, Panasonic, Pelco, Samsung
  • Sanyo, Sony, Videotec, Vivotek and etc.
  • ONVIF Version 2.3 conformance
  • 3D intelligent positioning with IMaxCamPro PTZ camera
  • Support 2 SATA HDDs up to 8TB, 2 USB(1 USB3.0)
  • Multiple network monitoring: Web viewer, CMS (PSS/ Smart PSS) & IMaxCam Mobile App.
  • Auto Overwrite / Loop Recording
  • Simultaneous multiple hi- res monitor output
  • Network Sub-stream Capable
  • E-Map Function Support
  • Real Time Recording/Playback
  • USB DVD/CD and Flash Drive Backup
  • Synced Audio Recording/Playback
  • Intuitive GUI
  • 1 Year Warranty



SPECIFICATIONS
Model NVR-WEC4204-P
Main Processor Dual-core embedded processor
Operating System Embedded LINUX
Video
IP Camera Input 4 channel
Two-way Talk 1 channel Input, 1 channel Output, RCA
Display
Interface 1 HDMI,1 VGA
Resolution 1920×1080, 1280×1024, 1280×720, 1024×768
Display Split 1/4/8/9
OSD Camera title, Time, Video loss, Camera lock, Motion detection, Recording
Recording
Compression H.264/MJPEG
Resolution 5Mp?2560×1920?/ 3Mp?2048×1536? / 1080P (1920×1080) / 720P (1280×720) / D1 (704×576 / 704×480) & etc.
Record Rate 200Mbps
Bit Rate 48~ 8192kbps
Record Mode Manual, Schedule (Regular (Continuous), MD, Alarm), Stop
Record Interval 1 ~ 120 min (default: 60 min), Pre-record: 1 ~ 30 sec, Post-record: 10 ~ 300 sec
Video Detection & Alarm
Trigger Events Recording, PTZ, Tour, Alarm, Video Push, Email,FTP, Buzzer & Screen tips
Video Detection Motion Detection , MD Zones: 396 (22×18), Video Loss & Camera Blank
Alarm Input 4 channel
Relay Output 2 channel
Playback & Backup
Sync Playback 1/4/8/9
Search Mode Time/Date, Alarm, MD & Exact search (accurate to second), Smart search
Playback Function Play, Pause, Stop, Rewind, Fast play, Slow play, Next file, Previous file, Next camera, Previous camera, Full screen, Repeat, Shuffle, Backup selection, Digital zoom Backup Mode USB Device / Network / Internal SATA burner
Network
Ethernet 1 RJ-45 port (10/100/1000Mbps)
Network Function HTTP, TCP/IP, IPv4/IPv6, UPNP, RTSP, UDP, SMTP, NTP, DHCP, DNS, IP Filter, PPPOE, DDNS, FTP, Alarm Server, IP Search (Support IMaxCamPro IP camera, DVR, NVS and etc.)
Max. User Access 128users
PoE 4 ports (IEEE802.3af)
Ethernet 1 RJ-45 port (10/100/1000Mbps)
Storage
Internal HDD 2 SATA ports, up to 8TB

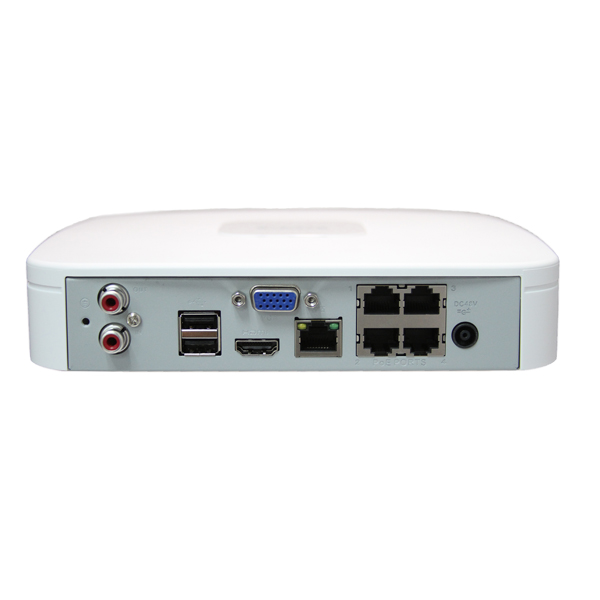

Auxiliary Interface
USB 2 ports (1 Rear USB3.0, 1 Front USB2.0)
RS232 1 port, For PC communication&Keyboard
RS485 1 port, For PTZ control
General
Power Supply DC12V/4A
Power Consumption 20W(without HDD)
Dimension (W×D×H) 1U, 375mm×285mm×50mm
Weight 2.0KG(without HDD)



  • 1/3” 3Mp Progressive Scan Aptina CMOS Image Sensor
  • Supports H.264 & MJPEG Triple Stream
  • High Performance Ambarella DSP
  • 20FPS@3Mp, 30FPS@ 2MP 1080P Recording Rate
  • 3.6mm Fixed Lens
  • Built-in Microphone
  • DWDR, AWB, AGC, BLC, HLC, 3DNR
  • 30m Maximum IR LED Distance
  • IP66 Ingress Protection Rating
  • 12vDC / PoE (802.3af)
  • Access via Built in Web Server, iMaxCam Mobile App & PSS
  • ONVIF Profile S Compliant



WEC-AudioDA30A

3 Megapixel IP-Camera

General



Sensor Type

1/3” 3 Megapixel Progressive Scan Aptina CMOS Image Sensor

Digital Signal Processor

Ambarella

Effective Pixels

2048 (H) x 1536 (V)

Scanning System

Progressive

Electronic Shutter Speed

Auto / Manual 1/3(4) ~ 1/10,000s

Lens

3.6mm Fixed Lens

Field of View

Horizontal: 72.5°

Minimum Illumination

0.01 Lux / F1.2 (Color); 0.005 Lux / F1.2 (B&W); 0 Lux / F1.2 (IR on)

S/N Ratio

> 50dB

Max IR LED Distance

30m

Day / Night

Auto (ICR) / Color / B&W

Backlight Compensation

BLC / HLC / DWDR (Digital WDR)

White Balance

Auto

Gain Control

Auto / Manual

Noise Reduction

3DNR

Privacy Masking

Up to 4 areas

Local Storage

N/A

Alarm Input / Output

N/A

Image Resolution

3M (2048 x 1536), 1080p (1920 x 1080), 720p (1280 x 720), D1 (704 x 480), CIF (352 x 240)

Frame Rate: Main Stream

3M (1 ~ 20fps); 1080p / 720p (1 - 30fps)

Frame Rate: Sub Stream

D1 / CIF (1 ~ 30fps)

Bit Rate

56 ~ 8192Kbps

Compression

H.264 / MJPEG

Audio Interface

Built-in Microphone

Audio Compression

G.711a / G.711u / PCM

Network



Network Interface

RJ-45 (10/100m)

Network Functions

IPv4 / IPv6, HTTP, HTTPS, SSL, TCP/IP, UDP, UPnP, ICMP, IGMP, SNMP, RTSP, RTP, SMTP, NTP, DHCP, DNS, PPPoE, DDNS, FTP, IP Filter, QoS, Bonjour

ONVIF Compliance

ONVIF Profile S

Max. User Access

20 users

Electrical



Power Requirements

DC12V, POE (802.3af)

Power Consumption

<4.5W

Environmental



Operating Temperature

-20°C ~ +60°C

Operating Humidity

90% RH Max.

Ingress Protection

IP66

Physical



Dimensions

108mm x 84mm

Weight

1.7 lb approx.

Shipping Weight

3 lbs approx.
