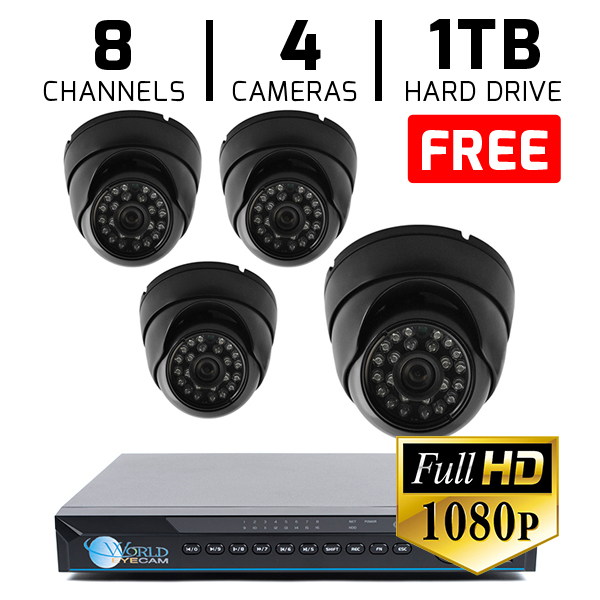

4 HD 1080p Security Dome 8Ch DVR System Kit for Business Professional Grade
More products by
iMaxCamPRO

4 HD 1080p Security Dome 8Ch DVR System Kit for Business Professional Grade


(0 reviews)

$1,146.50

$1,978.00

Availability In Stock
Ships Same Day

SKU 8CH-CVI-4BK-KIT

Product # 86488

Camera Resolution 1080P

Hard Drive #1

Hard Drive #2

Monitor

Cables

Power

This 4-channel kit uses security dome surveillance cameras that record up to 30 frames per second with a 1080p resolution. The security cameras record directly to the included 8 channel DVR via RG59 coaxial cable. The kit will also include a free 4 camera power supply and software for remote monitoring.







What's Included

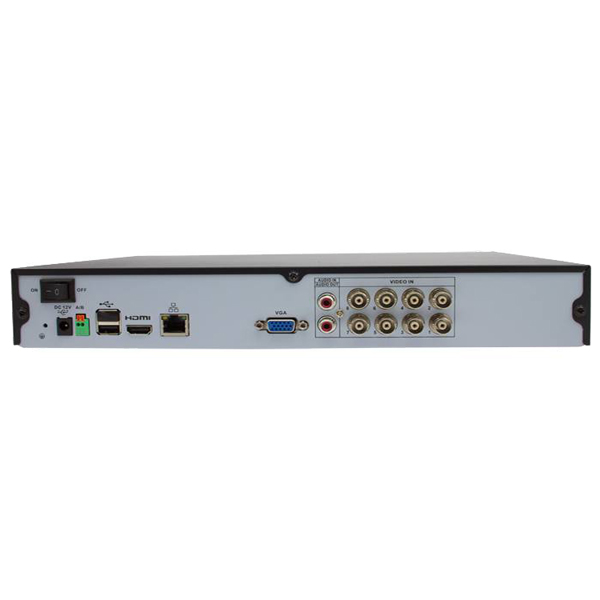

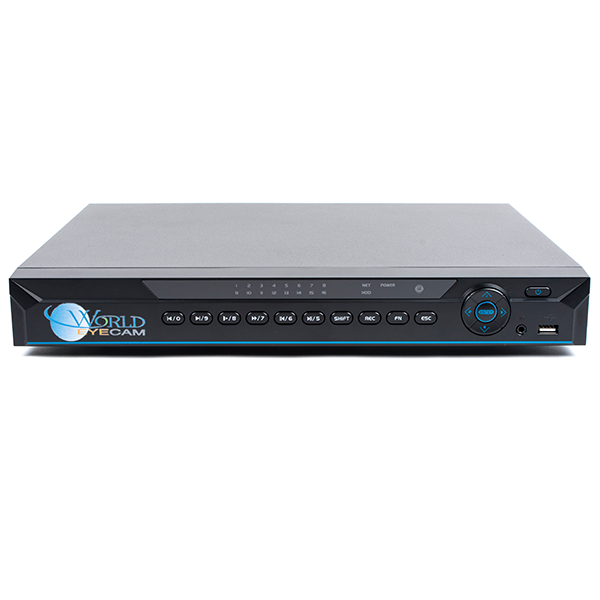

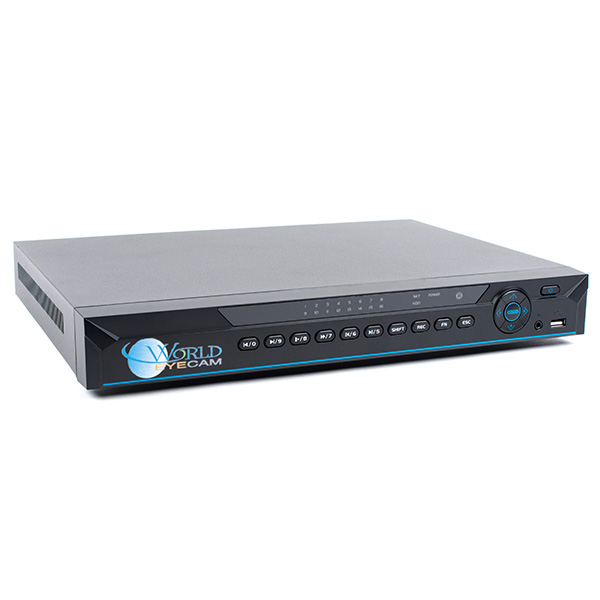

  • (1) HD-CVI 1080p 30FPS 8 Channel DVR Recorder
  • (4) HD-CVI 1.3 MP Security Domes
  • (1) FREE 500 FT Spool RG59 Siamese CCTV Coaxial Cable w/ connectors
  • (1) FREE 4 Camera Power Supply
  • Free mobile apps and monitoring software
  • Free lifetime technical support
  • Free 1 Year Warranty



SmartPSS software
Click/Tap on image for a more detailed view.



Why HD-AVS?

HD 1080p vs 720p vs 960h Resolution

HD 1080p vs 720p vs 960h Resolution
CLICK ON IMAGE TO ENLARGE IT

DVR Features

H.264 Real-time Recording and Playback

H.264 Real-time Recording and Playback: Its H.264 compression greatly reduces the size of your digital video files without compromising image quality (compared to other compression standards such as M-JPEG and MPEG-4). H.264 is a stable, proven compression technology, which offers unbeatable recording picture quality while at the same time saving you valuable hard drive storage space.

Remote Monitoring

Remote Monitoring: Don’t have immediate access to your NVR? Then don’t worry. You can effortlessly log onto your recordings by accessing them on any compatible internet ready device (Such as iPhone 6, iPhone 6 Plus, iPhone, iPad, iPad mini, and Androids devices).

Central Monitoring System

Central Monitoring System: Have more than one location? Well accessing each one of them on a different IP address is a thing of the past with our standard CMS software that allows you to painlessly link an almost unlimited number of recorders and cameras all to the same IP Address.

Multiple Playback and Recording Options

Multiple Playback and Recording Options: The multiple recording options allows you to set your NVR to record on a set schedule, continuous around-the-clock recording or to further conserve hard drive space only when motion is detected. You can also select the number of cameras to view on one screen or hide certain ones from other users using the multiple playback features.

E-map Function Support

E-map Function Support: The E-map feature provides a camera icon that represents the location of cameras on a map of a building or area, helping you to strategically place your cameras in the spots where surveillance is most needed. The detail this function provides is essential in saving time and the hassle of repositioning your cameras to achieve the desired viewing space.

Push Alerts & Automatic E-mail

Push Alerts & Automatic E-mail: Setup your DVR to automatically send you an e-mail alert or a Push notification with video clip every time there is a motion triggered event. This enables you to quickly take action when an incident has occurred.

3D Intelligent Positioning

3D Intelligent Positioning: This features let you digitally control your PTZ cameras (move up, move down, move left, move right, zoom in and zoom out) from your monitor and mobile applications.



Product Features

  • Support HDCVI / Analog / IP Video input
  • H.264 dual-stream video compression
  • All channel 720P realtime or 1080P non-realtime recording
  • 8 channel synchronous realtime playback, GRID interface & smart search
  • HDMI / VGA simultaneous video output
  • Support 2 SATA HDDs up to 6TB Each HDD, 2 USB2.0
  • 3D intelligent positioning with IMaxCamPro PTZ dome camera
  • ONVIF Version 2.3 conformance
  • Support Multi-brand network cameras: IMaxCamPro, Arecont Vision, AXIS, Bosch, Brickcom, Canon, CP Plus, Dynacolor, Honeywell, Panasonic, Pelco, Samsung, Sanyo, Sony, Videosec, Vivotech , and etc.
  • Multiple network monitoring: Web viewer, CMS (Smart PSS) & Smart Phone (IMaxCamPro)



SmartPSS software
Click/Tap on image for a more detailed view.





SPECIFICATIONS


Model IMAX-1U-TRI-8CVI-V2
Main Processor Embedded processor
Operating System Embedded LINUX
Camera Features
Input 8 channel, BNC
Standard HDCVI 1080P / 720P HD-CVI Camera
Standard Analog NTSC ( 525Line, 60f/s ) , PAL ( 625Line, 50f/s )
Standard IP 1080P /720P /D1 / CIF IP Camera
Audio
Input 4 channel, RCA
Output 1 channel, RCA
Two-way Talk 1 Channel Input, 1 Channel Output, RCA
Display
Interface 1 HDMI, 1 VGA
Resolution 1920×1080, 1280×1024, 1280×720, 1024×768, 800×600
Display Split 1/4/8/9
Privacy Masking 4 rectangular zones (each camera)
OSD Camera title, Time, Video loss, Camera lock, Motion detection, Recording
Recording
Video/Audio Compression H.264/G.711
Resolution 1080P ( 1920×1080 ) / 720P ( 1280×720 ) / 960H ( 960×576 / 960×480 ) / D1 / 4CIF ( 704×576/704×480 ) / CIF ( 352×288 / 352×240 ) / QCIF ( 176×144 / 176×120 )
Record Rate Main Stream 1080P ( 1~12/15fps ) / 720P / 960H / D1 / HD1 / 2CIF / CIF ( 1~25/30fps )
Record Rate Extra Stream CIF / QCIF (1~25/30fps ), D1 ( 1~12/15fps )
Bit Rate 48~4096Kb/s
Record Mode Manual, Schedule, Regular, Continuous, otion detect
Record Interval 1~60 min (default: 60 min), Pre-record: 1~30 sec, Post-record: 10~300 sec
Play Back
Playback Function Play, Pause, Stop, Rewind, Fast play, Slow play, Next file, Previous file, Next camera, Previous camera, Full screen, Repeat, Shuffle, Backup Selection, Digital Zoom (any size)
Search Mode Time/Date, Alarm, Motion Detect & Exact search (Accurate to the Second), Smart search
Playback Channel 1/4/9
Back Up Flash Drive, USB HDD, Network Download
Video Detection & Alarm
Trigger Events Recording, PTZ, Tour, Alarm out, Video Push, Email, FTP, Spot, Snapshot, Buzzer & Screen tips
Video Detection Motion Detection, MD Zones: 396(22×18), Video Loss & Camera Blank
Alarm Input 8 channel
Relay Output 3 channel
Network
Ethernet RJ-45 port (10 / 100M / 1000M)
Network Functions Monitor, PTZ Control, Playback, System Setting, File Download, Log Info
Protocol IPv4/IPv6, HTTP, HTTPS, SSL, TCP/IP, UDP, UPnP, ICMP, IGMP, SNMP, RTSP, RTP, SMTP, NTP, DHCP, DNS, PPPOE, DDNS, FTP, IP Filter, QoS, Bonjour
Max. User Access 128 User
Smart Phone iPhone, iPad, Android, Windows Phone
Storage
Internal HDD 2 SATA ports, up to 6TB each
E-SATA N/A
Auxiliary Interface
USB Interface 2 ports(1 Rear), USB2.0
RS485 1 port, For PTZ control
General
Power Supply DC12V/5A
Power Consumption 15W ( without HDD )
Working Environment -10°C ~+55°C / 10%~90%RH / 86~106kpa
Dimension ( W×D×H ) 1U, 375mm×285mm×55mm
Weight 2.35KG(without HDD)





Features

      •  2 Megapixel, 1080P@25/30fps,
      •  Super Low Illumination
      • WDR, Slow Shutter, 3D DNR
      • Best HD-CVI 1080P solution in the market
      • UP TO 1500 FEET OF CABLE TRANSMISSION DC 12V





(CLICK HERE) To view image at full 1080P



(CLICK HERE) To view image at full 1080P



SPECIFICATIONS



HD-CVI Model

IMAX-CVIDE20-MINI-B

Image Sensor

1/2.8" Sony IMX322 + Eyenix EN773E

Effective Pixels

2 Megapixel, 1080P@25/30fps,

Resolution

1080P

Scanning System

Progressive

Lens

3.6mm lens

Day/Night

ICR filter

IR Led

23pcs Ø5mm IR Leds

IR distance

20-25m

Minimum Illumination

0 Lux When IR ON

S/N Ratio

More than 50 DB(AGC Off)

Video Output

1-CH HD-CVI Output

Frame Rate

25/30fps@1080P

Max. Transmission Range

500M by CAT5 cable

Power Supply

DC12V

Operating Temperature

-20 °C ~ + 50 °C

Weight

5.1 kg

Dimensions

5 x 7 x 6 cm

Size

28, 30, 34, 36, 37

There have been no reviews
