32 HD-CVI 720P Dome Cameras DVR Kit for Business Professional Grade
More products by
iMaxCamPRO

32 HD-CVI 720P Dome Cameras DVR Kit for Business Professional Grade


(0 reviews)

$4,899.00

$7,410.00

Availability In Stock
Ships Same Day

SKU SKU-IMAX-CVI32-CVI-720P-Dome-KIT

Product # 85847

UPC 881314693757

Hard Drive #1

Hard Drive #2

Hard Drive #3

Hard Drive #4

Dome Color

Monitor

Cables

Power

This kit has everything you need for a comprehensive surveillance system. It has 32 high definition Dome security cameras recording up to 30 frames per second with a 720p resolution onto a 32 channel DVR. The kit includes a 1000 foot spool of RG59 coaxial cable to connect the surveillance cameras and DVR as well as an 18 camera power supply. With this purchase, WorldEyeCam will offer free mobile apps and monitoring software so users can keep an eye on their property from anywhere.

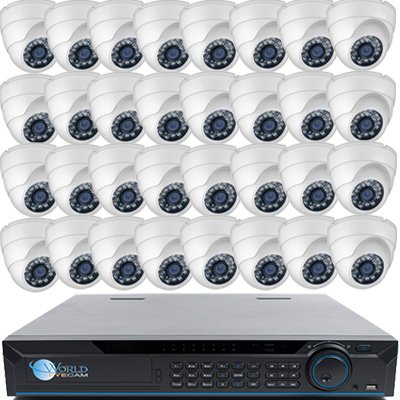

What's Included

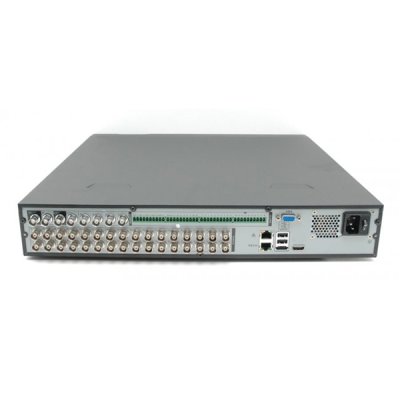

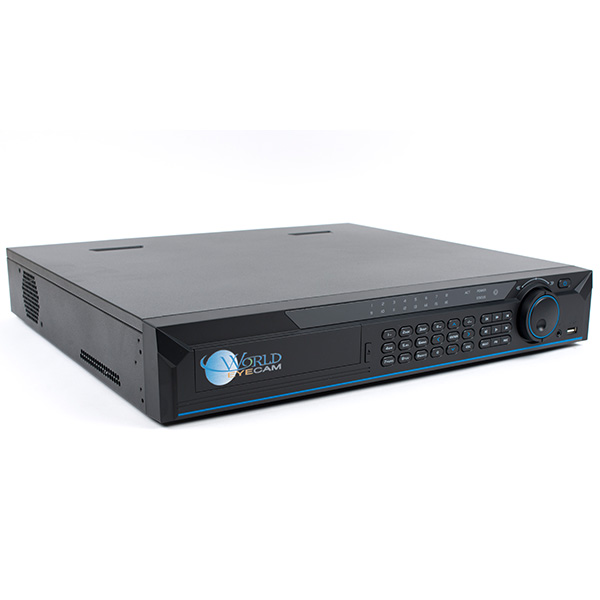

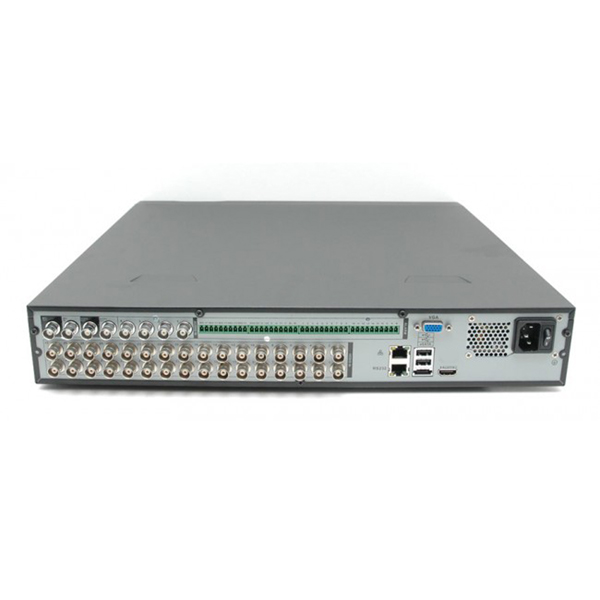

  • (1) HD-CVI 720P 30FPS 32 Channel DVR Recorder
  • (32) HD-CVI 1.3 MP CVI-720P Security Dome Cameras
  • (1) FREE 1000 FT Spool RG59 Siamese CCTV Coaxial Cable w/ connectors
  • (2) FREE 18 Camera Power Supply
  • Free mobile apps and monitoring software
  • Free lifetime technical support
  • Free 1 Year Warranty



SmartPSS software
Click/Tap on image for a more detailed view.





(CLICK HERE) To view imaged at  full 720P



(CLICK HERE) To view at full 720p



Why HD-AVS?



HD 1080p vs 720p vs 960h Resolution

HD 1080p vs 720p vs 960h Resolution
CLICK ON IMAGE TO ENLARGE IT

DVR Features

H.264 Real-time Recording and Playback

H.264 Real-time Recording and Playback: Its H.264 compression greatly reduces the size of your digital video files without compromising image quality (compared to other compression standards such as M-JPEG and MPEG-4). H.264 is a stable, proven compression technology, which offers unbeatable recording picture quality while at the same time saving you valuable hard drive storage space.

Remote Monitoring

Remote Monitoring: Don’t have immediate access to your NVR? Then don’t worry. You can effortlessly log onto your recordings by accessing them on any compatible internet ready device (Such as iPhone 6, iPhone 6 Plus, iPhone, iPad, iPad mini, and Androids devices).

Central Monitoring System

Central Monitoring System: Have more than one location? Well accessing each one of them on a different IP address is a thing of the past with our standard CMS software that allows you to painlessly link an almost unlimited number of recorders and cameras all to the same IP Address.

Multiple Playback and Recording Options

Multiple Playback and Recording Options: The multiple recording options allows you to set your NVR to record on a set schedule, continuous around-the-clock recording or to further conserve hard drive space only when motion is detected. You can also select the number of cameras to view on one screen or hide certain ones from other users using the multiple playback features.

E-map Function Support

E-map Function Support: The E-map feature provides a camera icon that represents the location of cameras on a map of a building or area, helping you to strategically place your cameras in the spots where surveillance is most needed. The detail this function provides is essential in saving time and the hassle of repositioning your cameras to achieve the desired viewing space.

Push Alerts & Automatic E-mail

Push Alerts & Automatic E-mail: Setup your DVR to automatically send you an e-mail alert or a Push notification with video clip every time there is a motion triggered event. This enables you to quickly take action when an incident has occurred.

3D Intelligent Positioning

3D Intelligent Positioning: This features let you digitally control your PTZ cameras (move up, move down, move left, move right, zoom in and zoom out) from your monitor and mobile applications.

Product Features

  • 32 cameras with 1080p realtime preview
  • H.264 dual-stream video compression
  • All channel 720P
  • 2HDMI / VGA / TV simultaneous video output
  • 16 channel synchronous realtime playback, GRID interface & smart search
  • 3D intelligent positioning with IMaxCamPro PTZ dome camera
  • Support 4 SATA HDDs up to 16TB, 1 eSATA up to 16TB,3 USB2.0
  • Multiple network monitoring: Web viewer, CMS(DSS/PSS) & IMaxCam



SPECIFICATIONS


Model IMAX-1.5U-32AVS
Main Processor Embedded processor
Operating System Embedded LINUX
Camera Features
Input 32 channel, BNC
Standard HDAVS 1080P / 720P HDAVS Camera
Standard Analog NA
Standard IP 1080P /720P /D1 / CIF IP Camera
Audio
Input 4 channel, BNC
Output 1 channel, BNC
Two-way Talk 1 channel Input, 1 channel Output, BNC
Display
Interface 2 HDMI, 1 VGA, 1 TV
Resolution 1920×1080, 1280×1024, 1280×720, 1024×768
Display Split 1 /4 /8 /9 /16 /25 /36
Privacy Masking 4 rectangular zones (each camera)
OSD Camera title, Time, Video loss, Camera lock, Motion detection, Recording
Recording
Video/Audio Compression H.264/G.711
Resolution 1080P ( 1920×1080 ) / 720P ( 1280×720 ) / 960H ( 960×576 / 960×480 ) / D1 / 4CIF ( 704×576/704×480 ) / CIF ( 352×288 / 352×240 ) / QCIF ( 176×144 / 176×120 )
Record Rate Main Stream 720P /960H /D1 /HD1 /2CIF /CIF ( 1~25/30 fps )
Record Rate Extra Stream CIF / QCIF ( 1~25 / 30 fps)
Bit Rate 48~4096Kb/s
Record Mode Manual, Schedule(Regular(Continuous), MD), Stop
Record Interval 1~60 min (default: 60 min), Pre-record: 1~30 sec, Post-record: 10~300 sec
Video Detection & Alarm
Trigger Events Recording, PTZ, Tour, Alarm out, Video Push, Email, FTP, Spot, Snapshot, Buzzer & Screen tips
Video Detection Motion Detection, MD Zones: 396(22×18), Video Loss & Camera Blank
Alarm Input 16 channel
Relay Output 6 channel
Playback & Backup
Sync Playback 1/ 4/ 9/ 16
Search Mode Time/Date, MD & Exact search (accurate to second)
Playback Functions Play, Pause, Stop, Rewind, Fast play, Slow play, Next file, Previous file, Next camera, Previous camera, Full screen, Repeat, Shuffle, Backup selection, Digital zoom
Backup Mode USB Device / eSATA Device / Internal SATA burner / Network
Network
Ethernet RJ-45 port (10 / 100M / 1000M )
Network Functions HTTP, IPv4/IPv6, TCP/IP, UPNP, RTSP, UDP, SMTP, NTP, DHCP, DNS, PPPOE, DDNS, FTP, IP Filter, SNMP, P2P
Max. User Access 128 User
Smart Phone iPhone, iPad, Android, Windows Phone
Storage
Internal HDD 4 SATA ports(4 HDDs or 3HDDs+1 CD/DVD-RW), up to 16TB
E-SATA 1 eSATA port, up to 16TB
Auxiliary Interface
USB Interface 3 ports (2 Rear), USB2.0
RS485 1 port, For PTZ control
RS485 1 port RS485 for PTZ control, 1 port RS422 for Keyboard
General
Power Supply AC 100~240 V, 50/60 Hz
Power Consumption 40W ( Without HDD )
Working Environment -10°C ~+55°C / 10%~90%RH / 86~106kpa
Dimension ( W×D×H ) 1.5U, 440mm×416mm×68mm
Weight 6KG ( without HDD )

SPECIFICATIONS



HD-AVS Model

IMAX-AVSDE13-MINI-B

Image Sensor

1/2.9" pixelplus CMOS (PO3100)

Effective Pixels

1312(H) * 740(V)

Resolution

720P

Scanning System

Progressive

Lens

3.6mm lens

Day/Night

ICR filter

IR Led

23pcs Ø5mm IR Leds

IR distance

20-25m

Minimum Illumination

0 Lux When IR ON

S/N Ratio

More than 50 DB(AGC Off)

Video Output

1-CH HD-AVS Output

Frame Rate

25/30fps@720P

Max. Transmission Range

500M by CAT5 cable

Power Supply

DC12V

Operating Temperature

-20 °C ~ + 50 °C

Weight

5.1 kg

Dimensions

5 x 7 x 6 cm

Size

28, 30, 34, 36, 37
