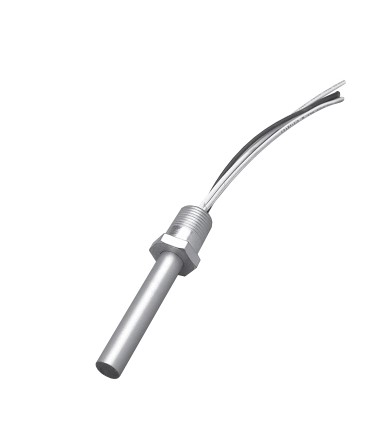

302-EPM-194 194° (90° C) heat detector, F explosion proof

Fire-Lite Alarms
SKU: 302-EPM-194

The Model 302-EPM-135 and 302-EPM-194 are explosion proof for installation in hazardous locations. Has hexagonal grip bushing with 1/2’ conduit threads for attachment to threaded hub cover of series JL fixture fitting as manufactured by Killark Electric Co., or equal. Must be hand tightened only. For Interior use.

Features

  • 194°F - Explosion Proof Mounting UL

  • Immediate Response - The 302 Series activate whenever ambient air temperature reaches a detector's setting, eliminating the thermal time lag inherent in conventional heat detectors.

  • Eliminates False Alarms - The 302 Series do not respond to momentary temperature fluctuations below the selected temperature.

  • Universal Application - The 302 Series can be used in all areas for any type of occupancy.

  • Self-restoring

  • Hermetically sealed, shock resistant, corrosion resistant, and tamper-proof.

Description

The 302 Series rate-anticipation heat detector respond and activate the fire alarm immediately whenever the ambient temperature reaches the preset temperature setting. Under rapid heat rise conditions, the rate-anticipation feature enables the detector to respond one to three degrees ahead of the setting. At the same time, however, it does not respond to momentary temperature fluctuations below the selected protection level, thus eliminating false alarms. When temperature drops back down below the protection level, the detector automatically resets itself.

Application Information

302 Series detectors have a smooth-ceiling UL rating of 50' x 50' (15.24 x 15.24 meters) and are the only type of heat detectors having such a rating on both fixed temperature and rate anticipation.

Dimensions

Total Overall Length: 4-1/8"
Base diameter: 2"

Electrical Ratings

Voltage

Current

6-125VAC

5 amps

6-24VDC

1 amp

125VDC

0.5 amp

Product Line Information

Note 1: For interior mounting in any atmosphere that is compatible with terminal screw type connections. UL rating 50'x50' (15.24 x 15.24 meters).

Note 2: Hermetically sealed for moisture-proof or dust-proof installations. Requires no special back box when the all-weather leads are properly spliced to 'THW' or equivalent type wire.

Note 3: Hermetically sealed for moisture-proof or dust-proof installations. Requires no special back box. Has plastic hexagonal wrench grip bushing with 1/2" (1.27 cm) conduit threads for attachment to threaded hub cover, or any outlet box.

Note 4: Same as model 302 except designed for horizontal mounting. UL rating 40' x 40' (12.19 x 12.19 meters).

Note 5: Explosion-proof for installation in hazardous locations. Has hexagonal wrench grip bushing with 1/2" (1.2 cm) conduit threads for attachment to threaded hub cover of Series JL fixture fitting as manufactured by Killark Electric Co., or equal

    • 47% less
    Market price:$186.00 save $88.00
  • $98.00
Qty:
OR

The Model 302-EPM-135 and 302-EPM-194 are explosion proof for installation in hazardous locations. Has hexagonal grip bushing with 1/2’ conduit threads for attachment to threaded hub cover of series JL fixture fitting as manufactured by Killark Electric Co., or equal. Must be hand tightened only. For Interior use.

Features

  • 194°F - Explosion Proof Mounting UL

  • Immediate Response - The 302 Series activate whenever ambient air temperature reaches a detector's setting, eliminating the thermal time lag inherent in conventional heat detectors.

  • Eliminates False Alarms - The 302 Series do not respond to momentary temperature fluctuations below the selected temperature.

  • Universal Application - The 302 Series can be used in all areas for any type of occupancy.

  • Self-restoring

  • Hermetically sealed, shock resistant, corrosion resistant, and tamper-proof.

Description

The 302 Series rate-anticipation heat detector respond and activate the fire alarm immediately whenever the ambient temperature reaches the preset temperature setting. Under rapid heat rise conditions, the rate-anticipation feature enables the detector to respond one to three degrees ahead of the setting. At the same time, however, it does not respond to momentary temperature fluctuations below the selected protection level, thus eliminating false alarms. When temperature drops back down below the protection level, the detector automatically resets itself.

Application Information

302 Series detectors have a smooth-ceiling UL rating of 50' x 50' (15.24 x 15.24 meters) and are the only type of heat detectors having such a rating on both fixed temperature and rate anticipation.

Dimensions

Total Overall Length: 4-1/8"
Base diameter: 2"

Electrical Ratings

Voltage

Current

6-125VAC

5 amps

6-24VDC

1 amp

125VDC

0.5 amp

Product Line Information

Note 1For interior mounting in any atmosphere that is compatible with terminal screw type connections. UL rating 50'x50' (15.24 x 15.24 meters).

Note 2Hermetically sealed for moisture-proof or dust-proof installations. Requires no special back box when the all-weather leads are properly spliced to 'THW' or equivalent type wire.

Note 3Hermetically sealed for moisture-proof or dust-proof installations. Requires no special back box. Has plastic hexagonal wrench grip bushing with 1/2" (1.27 cm) conduit threads for attachment to threaded hub cover, or any outlet box.

Note 4Same as model 302 except designed for horizontal mounting. UL rating 40' x 40' (12.19 x 12.19 meters).

Note 5Explosion-proof for installation in hazardous locations. Has hexagonal wrench grip bushing with 1/2" (1.2 cm) conduit threads for attachment to threaded hub cover of Series JL fixture fitting as manufactured by Killark Electric Co., or equal

    • SKU
      302-EPM-194
    • Weight
      5 lbs
  • Manufacturer
    Fire-Lite Alarms
