16 Channel Full HD 30FPS @1080i HD-SDI DVR System
More products by
CTRing

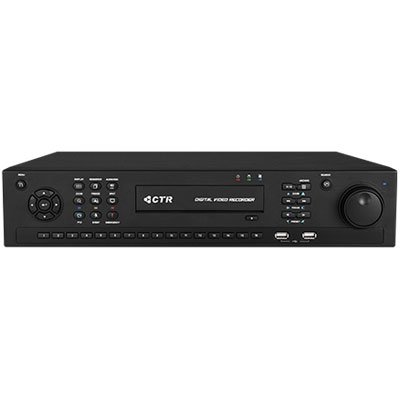

16 Channel Full HD 30FPS @1080i HD-SDI DVR System


(0 reviews)

$2,230.00

Availability In Stock
Ships same day

SKU CK5616

Product # 85495

Hard Drive #1

Hard Drive #2

Hard Drive #3

Hard Drive #4

This 16 channel DVR records up to 480 frames per second with a high definition resolution on all channels. It will play back footage in a 1080p resolution across multiple monitors simultaneously. Footage can also be viewed remotely on a mobile device and stored on the internal hard drive. The DVR also comes equipped with CMS software, dual stream optimizer and monitoring technology.



Features

  • H.264 Compression (High Profile)
  • 16 HD-SDI Video Input (1080p, 1080i or 720p) / NTSC or PAL
  • Max. 120/240/480 Recording Frames per Second
  • HDMI & VGA Output - Full HD (Max. 1920 x 1080)
  • Picture Quality : Utmost Graphic, Respectively Comparing Its Picture Size
  • Mobile Viewer : iPad / iPhone / Android
  • Dual Stream : Optimize Network Transfer Speed
  • POS text insertion (Patent Pending) : Displaying & Recording Transaction Data from POS
  • User Friendly GUI : Flexible, Easy and Convenient
  • Advanced CMS Software : Convenient and Versatile Software
  • S.M.A.R.T : Self Monitoring Analysis and Reporting Technology

CMS Features

  • Up to 512 Channel Display (Dual Live Screen)
  • Multi Group Monitoring
  • Various Search Mode : Calendar / Date & Time / Event / Smart / Thumbnail Search
  • Individual Instant Recording / Playback
  • Event Popup View
  • Digital Zoom
  • Full Function Log Windows
  • Remote Multi Site Control
  • Remote PTZ Control
  • Remote Setup (Configuration)
  • 2-Way Audio (Bi-Directional)
  • Local Recording (NVR Function) & Playback
  • Archiving (EXE/JPEG File Format)
  • Remote Alarm Out Control - Local Audio Out Volume Control - Local Account
  • Remote Camera Color Adjustment
  • WCS (Watermark Check System)
  • EXE to AVI Converter
  • Multi Level & Hierarchical E-map
  • Keyboard Controller
  • Remote S/W Upgrade
  • Estimator (Calculate the estimated time of recording)

OS Compatibility

OS Compatibility


Web Client Features

  • Live Monitoring/Search
  • Multi Channel Display
  • Full Screen Mode
  • Image Capture & Print Screen
  • Audio Control
  • PTZ Control
  • Digital Zoom (Live & Search)
  • Live Monitoring
  • Camera Name & Date/Time Display

Browser Compatibility

Browser Compatibility


Mobile Compatibility

Mobile Compatibility

Specifications

Model

CK5616

Compression

H.264 (High Profile)

Operating System

Embedded Linux

OS Firmware

Linux OS in Flash Memory

Signal Format

HD-SDI (720p, 1080i up to 1080p 30) / NTSC or PAL (Auto / Manual)

Memory

2GB DDR3 Memory

Video Input

16 (BNC)

Video Output

Composite: 1

VGA

1 Port ( Max. 1920 x 1080)

HDMI

1 Port ( Max. 1920 x 1080)

Multi Spot Output

Composite: 1

Recording Rate

480fps @1080i 30 / 480(400)fps @960H

Audio Input / Output

16 Input / 1 Output

Alarm Input

16 Input

Master Alarm

1

Alarm Output

16 (TTL) / 2 (Relay)

USB 2.0

4 x USB (2 x Front Panel, 2 x Rear Panel)

Ethernet

10 / 100 / 1000 Mbps Ethernet (RJ-45)

User Interface

Keypad, Mouse, PTZ Control, Remote Controller

Archive File Format

EXE (Video Clip)/ AVI (Video Clip) / JPEG (Still Image)

NTP Server

Yes

GMT Time Zone

Yes

Auto DST

Yes

Recording Qualities

Super / High / Standard / Low

Recording Modes

Continuous / Alarm / Motion / Emergency

Motion Detection

Yes (30 x 20)

Playback Control

x1, x2, x4, x8, x16, x32, x64, Extreme

PTZ Control

RS-485 /422 Serial Port (Terminal Block), RS-485 Through BNC (UTC)

Text Insertion (POS)

4

Multi Language

English / French / Japanese / Korean / Russian / Finnish / Turkish / Dutch /Chinese / Vietnamese / Thai / Spanish / German / Portuguese / Arabic / Italian

Central Monitoring Station

CMS Pro (Windows) / iCMS (MAC) / Web Client Pro

Mobile Viewer

iPad / iPhone / Android

Primary Storage

4 x SATA HDD, 1 x ODD

eSATA

1 Port

Clip Copy Storage

Built-in Internal DVD-RW, USB Memory Stick

Dimension(WxHxD)

430 mm x 88 mm x 380 mm / 16.93 inch x 3.46 inch x 14.96 inch (Rack Type)

Operating Temperature

5?C~40?C / 41?F~104?F

Operating Humidity

0% ~ 90%

Power Adapter

12V, 6.67A (100W)

Power Consumption

Max. 59.4W in Normal Operation
