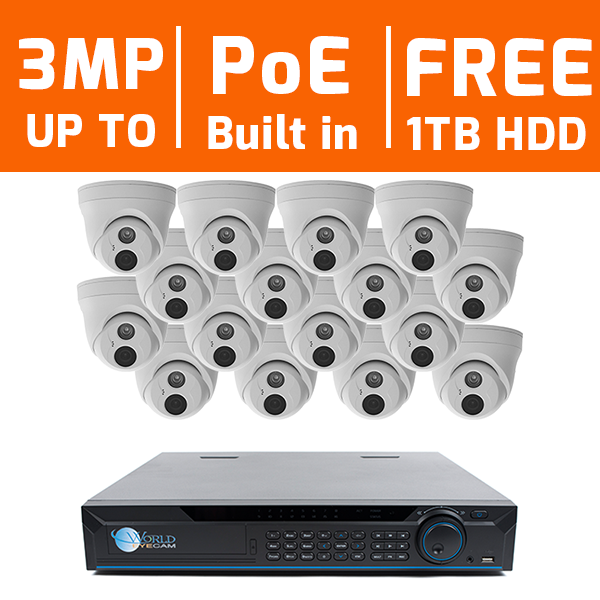

16 CH 4K NVR & 16 HD 3 Megapixel IR Dome With Audio Mic with 1TB Hard Drive Kit for Business Professional Grade
More products by
iMaxCamPRO

16 CH 4K NVR & 16 HD 3 Megapixel IR Dome With Audio Mic with 1TB Hard Drive Kit for Business Professional Grade


(0 reviews)

$5,337.50

$6,429.00

Availability In Stock
Ships Same Day

SKU NVR-4416-P-16CH-AD-KIT

Product # 85979

Hard Drive #1

Hard Drive #2

Hard Drive #3

Hard Drive #4

CAT5 CABLE

Monitor

This kit includes 16 dome with built in mic security camera and IR night vision. It records high definition footage in 3 megapixel resolutions and it is approved for outdoor use.  All footage is recorded onto the included NVR and can be monitored remotely via mobile device or computer. The kit also includes the necessary CAT5 network cables and free monitoring software.



HD 1080p vs 720p vs 960h Resolution


SmartPSS software
Click/Tap on image for a more detailed view.

  (CLICK HERE) for full View



(CLICK HERE ) for full screen




What’s Included:

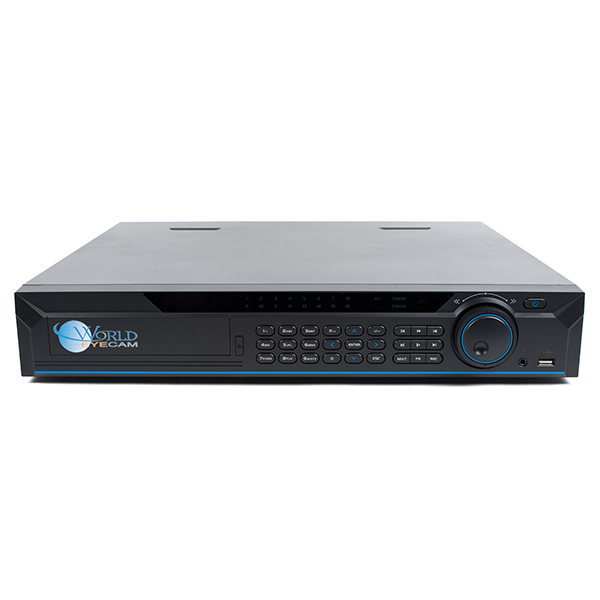

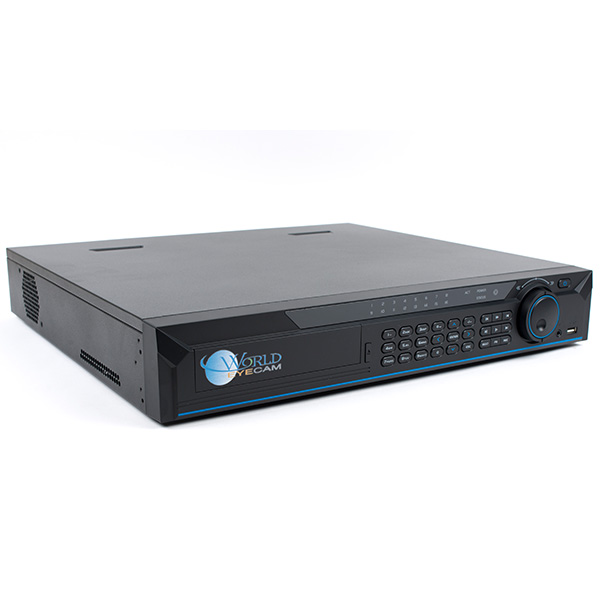

· (1) 16 Channel 4K NVR Recorder with built in PoE power
· (16) Vandal Resistant Dome Cameras with built in Mic
· (16) Free 100' CAT5 Network Cable
· Free mobile apps and monitoring software
· Free lifetime technical support
· Free 1 Year Warranty

Additional DVR Features:

Plug and Play right out the Box: The simple to use instructions and setup seamlessly allow you to turn on your NVR recorder, plug in your cameras and the system is ready to record! No need to go through and setup any of the standard setting’s since the NVR will automatically configure any of iMaxCamPro cameras attached to the PoE ports.
Easy Plug and Play Installation


H.264 Real-time Recording and Playback: Its H.264 compression greatly reduces the size of your digital video files without compromising image quality (compared to other compression standards such as M-JPEG and MPEG-4). H.264 is a stable, proven compression technology, which offers unbeatable recording picture quality while at the same time saving you valuable hard drive storage space.
h.264 Compression


Remote Monitoring: Don’t have immediate access to your NVR? Then don’t worry. You can effortlessly log onto your recordings by accessing them on any compatible internet ready device.
Free Remote Access Mobile Apps for Android, iPhone and tablets



Central Monitoring System: Have more than one location? Well accessing each one of them on a different IP address is a thing of the past with our standard CMS software that allows you to painlessly link an almost unlimited number of recorders and cameras all to the same IP Address.
Free CMS Software PSS


Multiple Playback and Recording Options: The multiple recording options allows you to set your NVR to record on a set schedule, continuous around-the-clock recording or to further conserve hard drive space only when motion is detected. You can also select the number of cameras to view on one screen or hide certain ones from other users using the multiple playback features.
Motion Detection or Around the Clock Recording


E-map Function Support:
The E-map feature provides a camera icon that represents the location of cameras on a map of a building or area, helping you to strategically place your cameras in the spots where surveillance is most needed. The detail this function provides is essential in saving time and the hassle of repositioning your cameras to achieve the desired viewing space.
Emap function for expansive properties like a college campus


Push Alerts & Automatic E-mail: Setup your NVR to automatically send you an e-mail alert or a Push notification with video clip every time there is a motion triggered event. This enables you to quickly take action when an incident has occurred.
Push Notification or E-Mail Alerts are easy to configure


Megapixel IP Dome Cameras: The IP Cameras record directly to all of our iMaxCamPro NVR Systems. The cameras capture a crisp and clean 720p standard image resolution, resulting in an image quality many times higher than analog cameras.
Megapixel quality means catching the small details


Vandal Proof: The vandal proof housing built around these cameras deliver that added satisfaction that they are built to last in any life situation.
Vandal resistant Dome camera


Weather Resistant Indoor/Outdoor Dome Camera: The camera enclosure is built to withstand even the harshest of conditions including ultra heavy rain, snow, and extreme hot weather conditions.
IP66 rated for indoor or outdoor use

Custom System Design:
Worldeyecam offers free consultation and system design, so if the bundled kits don't have what you need don't hesitate to call us! 1-888-211-2288 Monday through Friday 8AM to 5PM Pacific time.
Free System Design and Consultation



Product Features

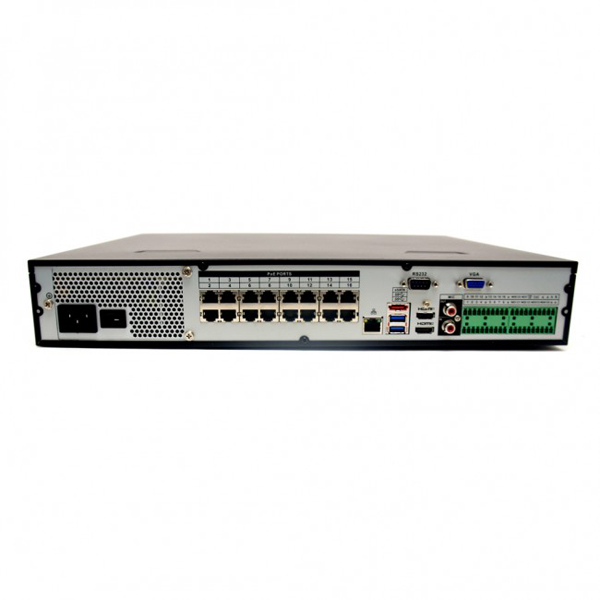

  • 16 Channels of IP Recording
  • Supports H.265, H.264 and MJPEG Video Compression
  • 192Mbps of Available Recording Bandwidth
  • Up to 12MP Recording Resolution
  • 4 SATA Ports for Internal Storage, 1 eSATA Port
  • 16 PoE+ Ports
  • 2 HDMI and 1 VGA Video Output Ports
  • ONVIF 2.4 Compliant
  • 1 year warranty

SPECIFICATIONS
Model WEC-NVR4416-16P-4K
IP Camera Imputs 16 Channels
Two Way Talk 1 Channel RCA Input / Output
Display Interface 2 HDMI, 1 VGA
Display Resolution 3840 x 2160, 1920 x 1080, 1280 x 1024, 1280 x 720, 1024 x 768
Display Split 1 / 4/ 8 / 9
On-Screen Display Camera Title, Time, Video Loss, Channel Lock, Motion Detection, Recording
Video Compression H.265 / H.264 / MJPEG
Recording Resolution 12MP, 8MP, 6MP, 5MP, 3MP, 1080p, 1.3MP, 720p, D1
Recording Rate 192Mbps
Bit Rate 1 - 20Mbps
Recording Mode Manual, Schedule (Continuous, MD, Alarm), Stop
Trigger Events Recording, PTZ, Tour, Alarm Out, Video Push, E-mail, FTP, Snapshot, Buzzer, On-Screen Notification
Motion Detection Motion Detection, 396 MD Zones (22 x 18), Video Loss and Camera Blank
Alarm Inputs 16 Channels
Motion Detection Motion Detection, 396 MD Zones (22 x 18), Video Loss and Camera Blank
Alarm Inputs 16 Channels
Relay Outputs 6 Channels
Synchronized Playback 1 / 4 / 9 / 16
Search Mode Time/Date, Alarm, MD & Exact Search (accurate to second), Smart Search
Playback Functions Play, Pause, Stop, Rewind, Fast Forward, Frame by Frame, Next File, Previous File, Next Camera, Previous Camera, Full Screen, Repeat, Shuffle, Backup Selection, Digital Zoom
Backup Media USB Device / Network / Internal SATA burner / eSATA Device
Network interface 1 RJ-45 (10/100/1000M) Ethernet Port
PoE 16 ports (IEEE802.3at/af)>
Network Protocols HTTP, TCP/IP, IPv4/IPv6, UPnP, UDP, SMTP, NTP, DHCP, DNS, IP Filter, PPPoE, DDNS, FTP, Alarm Server, IP Search
Remote User Access Maximum 128 Users
HDD Interfaces 4 Internal SATA III Ports with a maximum storage capacity of 6TB each, 1 eSATA port
USB Interfaces 1 USB 2.0 Port (front), 2 USB 3.0 Port (rear)
RS-232 Interface 1 Port for PC Communication and/or Keyboard
RS-485 Interface 1 Port for Serial PTZ Control
General
Power Requirement AC100V - 240V, 50/60Hz)
Power Consumption NVR: Maximum 27W (without HDD)
Operating Environment Operating Environment -10°C - +55°C, Less than 90% Relative Humdity
Dimensions 1.5U, 440mm x 405mm x 76mm
Weight 11 lbs (without HDD)
Shipping Weight 23 lbs (Dimensional Weight)



  • 1/3” 3Mp Progressive Scan Aptina CMOS Image Sensor
  • Supports H.264 & MJPEG Triple Stream
  • High Performance Ambarella DSP
  • 20FPS@3Mp, 30FPS@ 2MP 1080P Recording Rate
  • 3.6mm Fixed Lens
  • Built-in Microphone
  • DWDR, AWB, AGC, BLC, HLC, 3DNR
  • 30m Maximum IR LED Distance
  • IP66 Ingress Protection Rating
  • 12vDC / PoE (802.3af)
  • Access via Built in Web Server, iMaxCam Mobile App & PSS
  • ONVIF Profile S Compliant



WEC-AudioDA30A

3 Megapixel IP-Camera

General



Sensor Type

1/3” 3 Megapixel Progressive Scan Aptina CMOS Image Sensor

Digital Signal Processor

Ambarella

Effective Pixels

2048 (H) x 1536 (V)

Scanning System

Progressive

Electronic Shutter Speed

Auto / Manual 1/3(4) ~ 1/10,000s

Lens

3.6mm Fixed Lens

Field of View

Horizontal: 72.5°

Minimum Illumination

0.01 Lux / F1.2 (Color); 0.005 Lux / F1.2 (B&W); 0 Lux / F1.2 (IR on)

S/N Ratio

> 50dB

Max IR LED Distance

30m

Day / Night

Auto (ICR) / Color / B&W

Backlight Compensation

BLC / HLC / DWDR (Digital WDR)

White Balance

Auto

Gain Control

Auto / Manual

Noise Reduction

3DNR

Privacy Masking

Up to 4 areas

Local Storage

N/A

Alarm Input / Output

N/A

Image Resolution

3M (2048 x 1536), 1080p (1920 x 1080), 720p (1280 x 720), D1 (704 x 480), CIF (352 x 240)

Frame Rate: Main Stream

3M (1 ~ 20fps); 1080p / 720p (1 - 30fps)

Frame Rate: Sub Stream

D1 / CIF (1 ~ 30fps)

Bit Rate

56 ~ 8192Kbps

Compression

H.264 / MJPEG

Audio Interface

Built-in Microphone

Audio Compression

G.711a / G.711u / PCM

Network



Network Interface

RJ-45 (10/100m)

Network Functions

IPv4 / IPv6, HTTP, HTTPS, SSL, TCP/IP, UDP, UPnP, ICMP, IGMP, SNMP, RTSP, RTP, SMTP, NTP, DHCP, DNS, PPPoE, DDNS, FTP, IP Filter, QoS, Bonjour

ONVIF Compliance

ONVIF Profile S

Max. User Access

20 users

Electrical



Power Requirements

DC12V, POE (802.3af)

Power Consumption

<4.5W

Environmental



Operating Temperature

-20°C ~ +60°C

Operating Humidity

90% RH Max.

Ingress Protection

IP66

Physical



Dimensions

108mm x 84mm

Weight

1.7 lb approx.

Shipping Weight

3 lbs approx.
